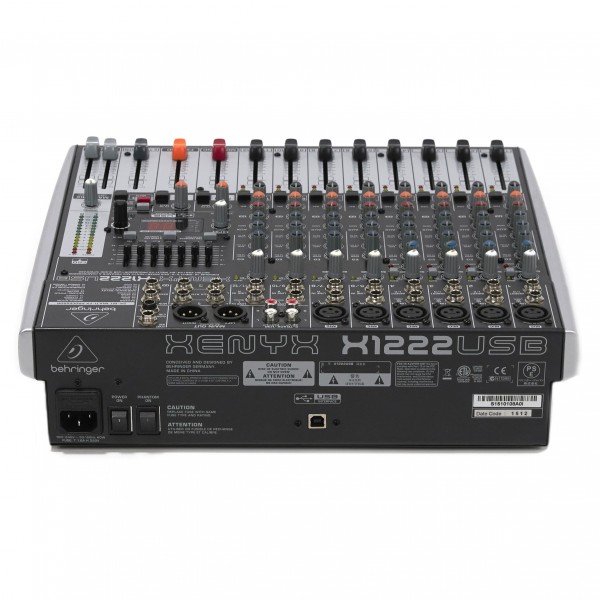

Behringer XENYX X1222USB 12 Channel Analog Mixer - Secondhand

Full Description

Sonically superior preamps

Behringer XEYNX preamps are renowned for their unique sonic performance. With an impressive 130dB of dynamic range and a frequency bandwidth of 10Hz to 20kHz the XEYNX preamps are the ideal choice for home recording and live use. Ensuring high quality and outstanding clarity, you'll own preamps that excel on a wide array of sources. From guitars to percussion, to vocals and bass. There's nothing that the XEYNX preamps won't shine on.

Sublimely musical British EQ

British mixing consoles are renowned for their analog warmth and unique sonic qualities. Behringer have meticulously studied and incorporated the same style of circuitry on the X1222USB's three band channel EQ, providing incredible warmth and detailed musical character. Even when applied generously, these equalizers exhibit sweet forgiveness and superb audio quality.

Built-in digital multi-FX

Equipped with Behringer's studio-quality 24-bit multi-FX processor, the XENYX X1222USB mixer provides you with 16 mind-blowing digital effects presets such as delay, chorus and reverb. Time-based functions can be entered manually by pressing the Tap button in tempo with the music. You then have the ability to apply them to any channel, as well as to the monitors and main output. Additionally, the X1222USB allows you to integrate all of your treasured outboard equipment - bypassing the built-in FX processor.

Innovative one-knob compression

The ''one-knob'' compression function is available on all mono channels and allows you to dial in the perfect amount of compression for both instruments and vocals. Delivering powerful mixes with punch and clarity, the ''one-knob'' compression is easy to operate and a rare feature for mixers within this price range.

Recording bliss

Thanks to the built-in, bi-directional stereo USB audio interface, you can connect your X1222USB mixer directly to your PC or Mac computer via a single USB cable. Now any signal source you connect to the mixer can be recorded directly to your hard drive.

Features

• Premium ultra-low noise, high headroom analog mixer
• 6 state-of-the-art, phantom-powered XENYX Mic Preamps comparable to stand-alone boutique preamps
• 4 studio-quality compressors with intuitive ''one-knob'' functionality and control LED for professional vocal and instrumental sound
• Neo-classic ''British'' 3-band EQs for warm and musical sound
• New studio-quality FX processor with 16 editable presets including reverb, chorus, flanger, delay, pitch shifter, multi-effects, Tap function and storable user parameter settings
• Built-in stereo USB/Audio Interface to connect directly to your computer
• Free audio recording, editing and podcasting software plus 150 instrument/effect plug-ins and ultra-low latency driver downloadable at www.behringer.com
• 7-band stereo graphic EQ allows precise frequency correction of monitor or main mixes
• Revolutionary FBQ Feedback Detection System instantly reveals critical frequencies
• Breathtaking XPQ 3D stereo surround effect for more vitality and enhanced stereo image
• Voice Canceller function for sing-along applications
• 4 fully equipped stereo input channels featuring 2 additional mic inputs on channels 5/6 and 7/8, 3-band EQ and input trim control
• Channel inserts on each mono channel for flexible connection of outboard equipment
• 2 aux sends per channel: 1 pre fader for monitoring, 1 post fader (for internal FX and/or as external send); 2 multi-functional stereo aux returns
• Balanced main mix outputs with gold-plated XLR connectors, headphone/control room output and stereo recording outputs
• Long-wearing 60-mm logarithmic-taper faders and sealed rotary controls
• "Planet Earth" switching power supply for maximum flexibility (100 - 240 V), noise-free audio, superior transient response plus low power consumption for energy saving
• Rack mount brackets included for ultimate flexibility
• Designed and engineered in Germany

Specifications

• Dimensions: 370mm x 330mm x 90mm / 14.56'' x 13'' x 3.54'' (W x D x H)
• Weight: 4.22kg / 9.3lbs
• Power Consumption: 40W
• Power Supply: Standard IEC Receptacle

Mono Inputs

• Input Connectors: XLR, Electronically Balanced
• Mic Preamp: XENYX
• Frequency Response:

Line Input

• Input Connectors: 1/4'' TRS, Electronically Balanced
• Impedance:
  • Balanced: Approx. 20k?
  • Unbalanced: Approx. 10k?
• Gain Range: -10dB - +40dB
• Maximum Input Level: +22dBu @ 0dB Gain

Stereo Inputs

• Microphone Inputs: XLR, Electronically Balanced
• Impedance: Approx. 2.6k? Balanced
• Gain Range: 0dB - +40dB
• Maximum Input Level: +2dBu

Stereo Line Inputs

• Connectors: 2 x 1/4'' TRS, Unbalanced
• Impedance: Approx. 40k? @ 0dB Gain
• Gain Range: -20dB - +20dB
• Maximum Input Level: +22dBu @ 0dB Gain

Attenuation

• Main Fader Closed: 98dB
• Channel Muted: 85dB
• Channel Fader Muted: 85dB

CD/Tape Input

• Connectors: RCA
• Impedance: Approx. 10k?
• Maximum Input Level: +22dBu

EQ Mono Channels

• Low: 80Hz / ±15dB
• Mid: 2.5kHz / ±15dB
• High: 12kHz / ±15dB
• Low Cut: 80Hz, 18dB/Oct

EQ Stereo Channels

• Low: 80Hz / ±15dB
• Mid: 2.5kHz / ±15dB
• High: 12kHz / ±15dB

MON/FX Send

• Connector: 1/4'' TS, Unbalanced
• Impedance: Approx. ?
• Maximum Output Level: +22dBu

Aux Returns

• Connector: 1/4'' TRS, Unbalanced
• Impedance: Approx. 10k?
• Maximum Input Level: +22dBu

Main Outputs

• Connector: XLR, Electronically Balanced
• Impedance:
  • Balanced: 240?
  • Unbalanced: 120?
• Maximum Output Level: +28dBu

Headphone Output

• Connector: 1/4'' TRS, Balanced
• Maximum Output Level: +19dBu / 150? (+25dBm)

CD/Tape Output

• Connector: RCA
• Impedance: Approx. 1kohms
• Maximum Output Level: +22dBu
• DSP: Texas Instruments
• Converter: 24-Bit Sigma-Delta, 64/128-Times Oversampling
• Sampling Rate: 40kHz

USB

• Audio: Stereo In/Out
• Connector: Type B
• Converter: 16-Bit
• Sample Rate: 48kHz
