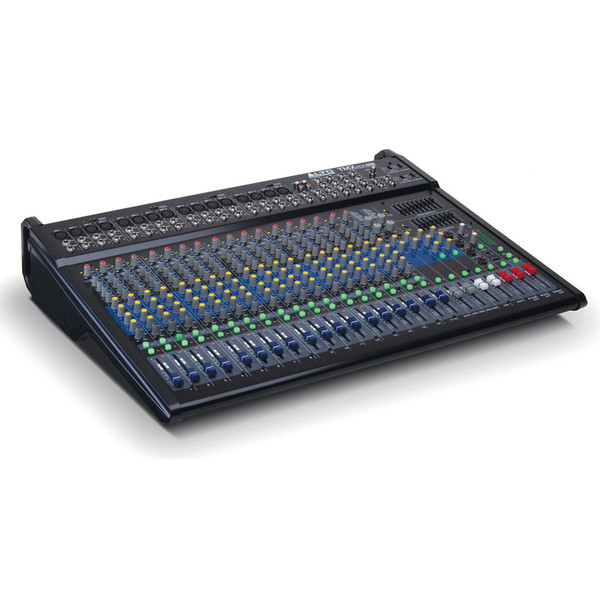

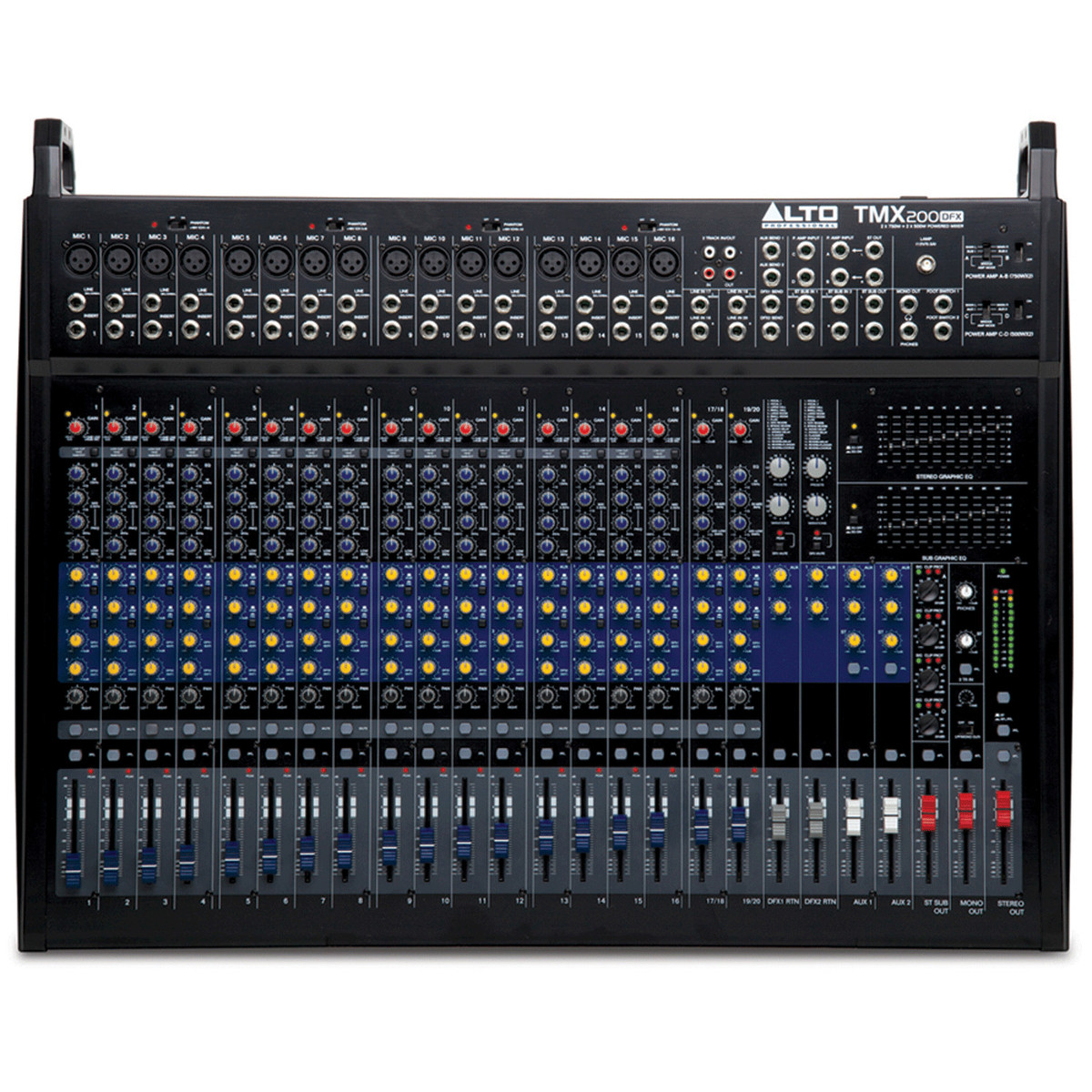

DISC Alto TMX200 20 Channel DSP Powered Mixer

Full Description

Live performances are more than a job, they are an experience for the performers, the audience and for the sound engineer. The EMPRE TMX series was engineered to precise specifications to deliver the kind of performance you demand, while giving you everything you need to create an unforgettable experience. The EMPIRE TMX200DFX is the flagship of the TMX line, which also includes the TMX160DFX, TMX120DFX and TMX80FX.

The TMX200DFX is loaded with all the connections you need including 38 total inputs comprised of 16 XLR jacks with phantom power, 20 Line jacks and stereo RCA. These low-noise channels are your best friend when connecting instruments, mics, or even your iPod for playing between sets. Even better, each mono and stereo channel has its own 3-shelf EQ, so you can dial in every nuance you need in seconds. A/D and D/A conversion is performed with 24-bit precision, which means you'll never have a "What was that?" moment. Easy-to-view knobs with incredibly smooth movement help to make mixing feel like playing a fine instrument.

The TMX200DFX's on-board digital effects processor provides pristine 24-bit, ultra-clean digital effects you, and the audience, won't soon forget. Effects include Large Hall, Medium Hall, Large Room, Medium Room, Karaoke, Short Spring Reverb, Long Spring Reverb, Chamber, Mono Delay, Mono Echo,Stereo Echo, Flanger, Chorus, Reverb + Chorus, Reverb + Delay and Thickener.

Did we mention power? The TMX200DFX comes standard with the ability to deliver ultra-clean power at 2 x 750W (4-ohms) + 2 x 500W (4-ohms) or 1500W (8-ohms bridged) + 1000W (8-ohms bridged). These aren't peak rating either, this is pure continuous power. In short, it's a beast. Fortunately, all that power isn't as heavy as you might expect. Weighing in at just under 36 pounds, the TMX200DFX is the new undisputed champion of the power-to-weight class.

Whether you need just 8 channels, a full 20 or anything in-between, the Alto Professional EMPIRE TMX series has something to help you create an unforgettable experience every time.

Features / Specifications:

• 38 total inputs including 16 XLR jacks with phantom power, 20 Line jacks and stereo RCA
• On-board digital effects processor and 3-shelf EQ on each mono and stereo channel
• Continuous 2 x 750 Watt power at 4Ω + 2 x 500 Watt power at 4Ω; 1500W at 8Ω Bridged + 1000W at 8Ω Bridged
• 48V Phantom Power

• Microphone Input: Electronically Balanced
• Frequency Response: 20Hz to 20kHz, +/-1dB
• Distortion: ( THD&N) ≤0.03 at 0dBu, 1kHz
• Gain range: 0 dB to 45 dB (MIC)
• SNR (Signal-to-Noise Ratio): 115 dB
• Line Input: Electronically Balanced (Unbalanced)
• Frequency Response: 20Hz to 20kHz, +/-1dB
• Distortion: ( THD&N) ≤0.03 at 0dBu, 1kHz
• Gain range: -15 dBu to 30 dBu

• Microphone Input: 1.4k Ohms
• Channel Insert return: 2.5k Ohms
• All Other Input: 10k Ohms or Greater
• Tape Out: 1k Ohms
• All Other Outputs: 120 Ohms

• Hi Shelving: ±15 dB @12 kHz
• Mid bell: ±12 dB @100Hz ~ 8 kHz
• Low shelving: ±15 dB @80 Hz
• MAIN EQ 9 EQ: (63Hz 125Hz 250Hz 500Hz 1kHz 2kHz 4kHz 8kHz 16kHz)±15 dB
• DSP Section: A/D and D/A Converters 24-bit
• DSP Resolution: 24-bit
• Type of effects: Large Hall, Medium Hall, Large Room, Medium Room, Karaoke, Short Spring Reverb, Long Spring Reverb, Chamber, Mono Delay, Mono Echo,Stereo Echo, Flanger, Chorus, Reverb + Chorus, Reverb + Delay, Thickener
• Presets: 16
• Controls: 16-Posistion Preset Selector, CLIP LED, MUTE SWITCH with PEAK LED Indicator

• Fader 0 dB, Channels muted: -90dBr (ref.: +4dBu)
• Fader 0 dB, All Input Channels Assigned And Set To Unity Gain: -88dBr (ref.: +4dBu)

• Stereo mode: 2 500W @ 4ohm(EIAJ) 2 340W @ 4ohm(RMS); 2 750W @ 4ohm(EIAJ) 2 520W @ 4ohm(RMS)
• Bridge mode: 1000W @ 8ohm(EIAJ); 1500W @ 8ohm(EIAJ)

• Phantom Power: Mic Pin2/Pin3 And Pin1 47±2V
• Power supply Main voltage: 115V/230V
• Dimensions (WxLxH): 710mm x 565mm x 145mm
