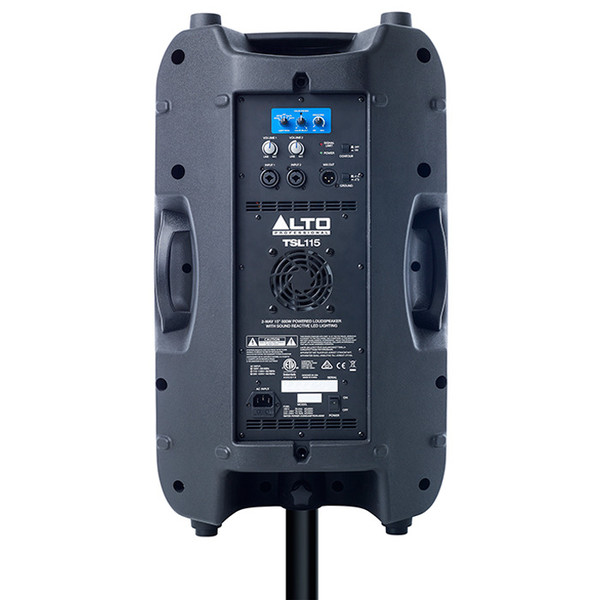

DISC Alto TSL115 Active Speaker with Circular LED Array

Full Description

Class-D Amplifier Technology

The exceptional power and sonic performance from the B210D is down to the Class-D amplifier technology incorporated into the unit. The revolutionary technology is designed to provide powerful performance whilst not compromising on sound quality and overall clarity. The technology itself delivers optimal energy efficiency, which in-turn means there is no need for big power supplies and large heat sinks. This technology delivers the B210D's exceptional performance value with an impressive power-to-weight ratio.

Circular LED Array

Full lighting systems can be hard to transport, especially for smaller music environments where excess equipment can be a major issue. The TSL115 has solved this issue by incorporating a light show directly into the speaker itself. The circular LED lighting built-on to the front of the speaker grill provides a convenient and bright lighting show as the music plays. The LED features customisable settings letting you select the colour of the light and also how the light reacts to the music. The five function settings for the LED lights are: Mood, Meter, Mix, Pulse and Party. Also included are brightness controls to let you adjust the brightness or disable the LEDs.

Features

• Built-in circular around-the-woofer LED array provides brilliant light show
• Five customizable lighting modes: Mood, Meter, Mix, Pulse, Party
• Brightness control lets you adjust or disable LEDs
• Custom Colour Control—easily adjust the desired mix of Red, Green, and Blue lighting
• Adds powerful sound and visual flair to any sound reinforcement/DJ gig
• Ultra-portable form factor for clean, uncluttered setups
• 800 Watts of Class D power pounds out exciting sound
• 15” low-frequency transducer, 1” neodymium driver
• Contour switch for increased EQ control
• Wide-angle audience coverage fills the entire room
• Two Mic/Line combo inputs with independent volume controls
• XLR output to link speakers
• Lightweight, trapezoidal cabinet with handles
• Use as a traditional upright loudspeaker or as floor wedge monitor
• Stand and pole-mountable or flyable

Specifications

• Output Power: 800 W peak (670 W LF + 130 W HF) / 400 W continous RMS (335 W LF Class D + 65 W HF Class AB)
• LF Driver: 15” (381 mm) woofer, 2” (51 mm) voice coil
• HF Driver: 1” (25 mm) neodymium
• Crossover: 2 kHz
• Maximum SPL: 122 dB continuous, 125 dB peak (@ 1 m)
• Frequency Response(-10dB): 48 Hz – 18 kHz (@ -10 dB)
• Coverage: 80°/100° H x 60° V nominal
• Connectors: (1) 1/4” TRS or XLR input // (1) XLR Link Output
• Light :
  • Type: 72 tri-color (red-green-blue) high-intensity LEDs; 22 W total; sound-reactive
  • Modes: Modes: Mood, Meter, Mix, Pulse, Party
  • Controls: Mode selection knob; color selection knob with RGB preview LED; brightness knob
• External Controls: Volume control, power-on with LED, clip limiter with LED, ground lift
• Electronic Protection: Thermal / Overload / Analog Limiter / Compressor
• Power:
  • AC Input: 100–120/220–240 V, 50/60 Hz
  • Fuse: 100-120 V T1.6AL AC250V / 220-240 V T800mAL AC250V / Inrush current at initial switch-on: 3.61 A / Inrush current after power supply interruption: 3.91 A
  • Enclosure Construction: Injection-molded polypropylene enclosure, multi-angle for main or monitor applications, metal grille, rubber feet, 2 handles (both sides)
  • Dimensions (W x D x H): 24.6 x 15.1 x 14.4 in / 625 x 386 x 366 mm
  • Net Weight: 41.0 lbs. / 18.6 kg

  For more information on the Alto TSL115 please refer to the PDF above.
