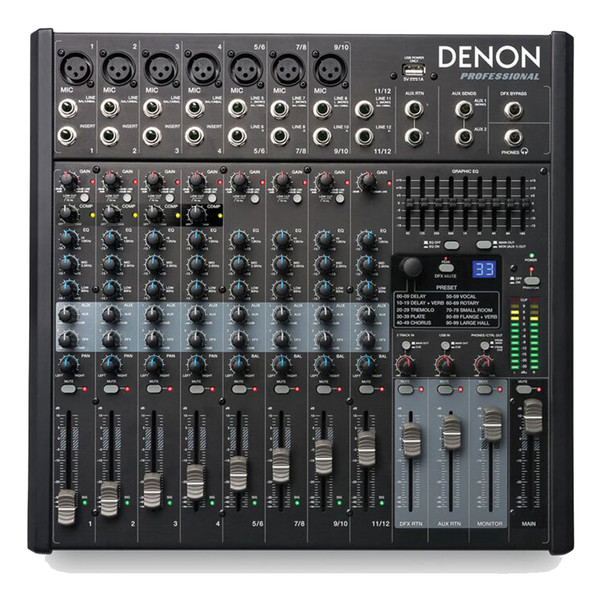

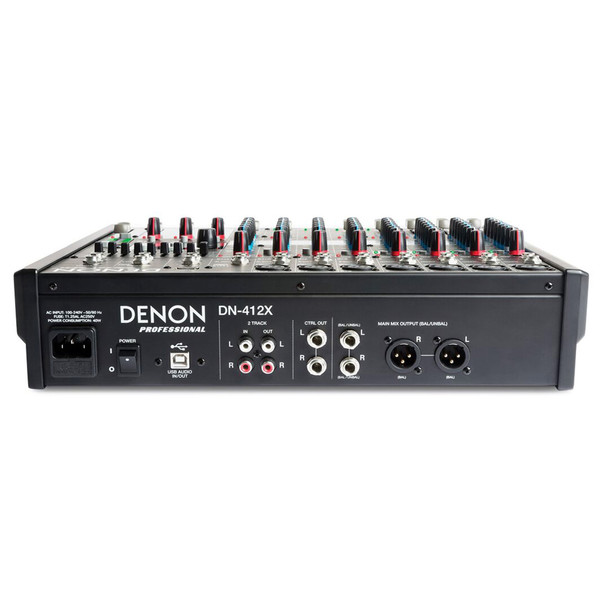

Denon DN-412X 12 Channel Audio Mixer - Nearly New

Full Description

Analog Compression and Superior Sound Quality

The DN-412X offers high-fidelity sound and extensive DSP tools, all in a single compact package. Each microphone channel features an ultra low-noise DyNamic Audio (DNA) microphone preamp with generous input signal headroom that ensures unprecedented sound quality and a robust audio signal path. The high headroom that these preamps provide results in cleaner mixes, a purer signal path and detailed, articulate audio that easily makes itself heard.

Onboard analog compression on channels one to four helps to control the dynamics and automatically rectify unpredictable audio level surges, creating a cohesive and well-defined mix. The DN-412X ensures that the full dynamic range of your mix is delivered with impressive crystal-clear clarity.

USB Audio Interface

Recording live performances, theater performances, speaking events and any other live sound event directly onto your computer has never been simpler. The onboard USB connection gives you the ability to upload your mix directly onto a Mac or PC, meaning that additional editing/mixing and post-production is straightforward and intuitive. Additionally, the USB connection is bi-directional which enables sound files stored on your computer to be sent and played through the mixer too.

100 Studio-Grade DSP Effects

Equipped with 100 premium studio-grade effects built-in, the DN-412X provides you with an extensive range of additional creative controls that are perfect for any mixing environment. The effects include room and delays, small and large hall acoustics, plate and spring reverbs, flangers, choruses and more.

Colour-Coded Interface

Designed for live sound environments that are often poorly lit and have restricted visibility, each section of the mixer is colour coded and includes brightly coloured knobs. Blue, green, red, yellow and white pots can be easily identified in low lighting conditions, while LED indicators for output level, peak and phantom power provide you with multiple visual cues that accurately reflect the actual output.

Features

• Seven XLR inputs with DNA mic preamps
• Dynamic compression on channels 1 - 4
• 3-band EQ plus two aux sends per channel
• 60mm faders with mute switch and LED
• USB audio connectivity with level control
• 100 studio-grade digital effects
• Balanced XLR and balanced/unbalanced 1/4'' outputs
• 9-band graphic EQ for main or monitor outputs
• Headphone output with independent level control
• USB jack to power lamps or charge mobile devices

Specifications

• Power Consumption: 40 Watts
• Power Connection: Standard IEC
• Dimensions: 358mm x 346mm x 80mm / 14.1'' x 13.6'' x 3.1'' (Width x Depth x Height)
• Weight: 4.1kg / 9lbs

Mono Input Channels

• Microphone Inputs: Electronically Balanced, Discrete Input Configuration
• Frequency Reponse: 20Hz - 20kHz ±0.5dB
• THD+N: Gain Range: 0dB - 45dB
• SNR: 90dB

Line Inputs

• Inputs: Electronically Balanced
• Frequency Response: 20Hz - 20kHz + 0.5dB
• THD+N: Sensitivity Range: -15dB - 30dB

Impedances

• Microphone Inputs: 51.1 K?
• Channel Insert Return: 200 K?
• All Other Inputs: >100 K?
• 2-Track Outputs: 10 K?
• All Other Outputs: 20 K?

Equalization

• High-Shelving: ±15dB @ 12kHz
• Mid-Bell (Mono): ±15dB @ 2.5kHz
• Low-Shelving: ±15dB @ 80Hz
• Main EQ: 9 EQ Bands ±15dB
  • 63Hz, 125Hz, 250Hz, 500Hz, 1kHz, 2kHz, 4kHz, 8kHz, 16kHz

DSP

• A/D & D/A Converters: 24-Bit
• DSP Resolution: 24-Bit
• Effects: 10 DSP Effects Families with 10 Variations Per Family
• Presets: 100
• Controls:
  • Rotary Encoder Preset Selector
  • DSP Mute Switch
  • Peak LED Indicator

Main Mix

• Noise (Bus Noise): -64dBr (ref: +4dBu, fader 0dB, channels muted)
  • -64dBr (ref: +4dBu, fader 0dB, all input channels assigned and set to ''unity'' gain)
• Phantom Power: Mic Pin2/Pin3 and Pin1 47±2V
