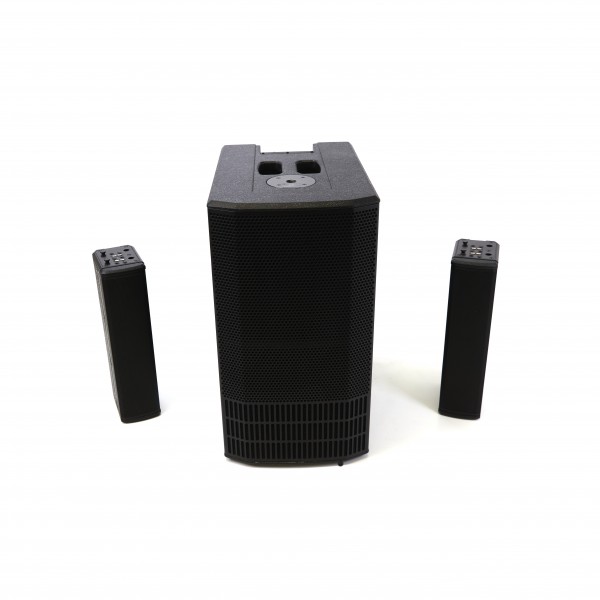

dB Technologies ES 1203 Column Array PA System - Secondhand

Full Description

Everything You Need, Exactly When You Need It

No two performances are the same. That's why you need a PA system that can do it all. The ES 1203 brings enough power to really get the party started. Harness 2400W of deep bass, delicate highs, and everything in between. The result is a well balanced tone that's sure to cut through the crowds.

Tailor your system to your event. This fully customisable PA can be used in stereo for wide dispersion, or mono for those intimate performances. Whichever you choose, you'll always get perfect intelligibility thanks to an intuitive phase plug design.

From the moment you switch on your ES 1203, you're ready to take centre stage. Instantly connect your instruments via the integrated 5 channel mixer. Each input boasts outstanding signal integrity, resisting feedback and compensating for impedance. And when your vocals need a boost, the adjustable gain switch will help you cut through the mix.

Features

• Powerful, intuitive, and versatile tri-amped digital active PA system
• Impressive 2400W peak/1200W RMS power
• Latest generation Digipro® G4 amplifier technology
• Easy to use DSP interface
• Perfect for any scenario with 3 configuration modes - mono, stereo, or double column
• Performance ready with an integrated 5 channel mixer
• Playback music from your Bluetooth device
• Connect your microphones, guitars, and keyboards with 3 input channel modes
• Customisable balanced output channel - Mix/Monitor/Aux
• Ultra-wide coverage for live performance venues

Specifications

Acoustical Data

• Frequency Response: 35Hz - 20kHz
• Maximum SPL: 132dB
• Mid Frequency - High Frequency Drivers: 8 x 4'' Neodymium with 1'' Voice Coils
• Low Frequency Driver: 2 x 12''
• Coverage: 97° x 60°

Input

• Input Channels:
  • 1 x Mic/Instrument Combo
  • 2 x Mic/Line Combo
  • 1 x Bluetooth

• Input Connectors:
  • 3 x XLR/TRS Combo
  • 1 x Built-In Bluetooth Receiver

• Output Connector: 1 x XLR, Balanced

Amplifier

• Amplifier Technology: Digipro® G4
• Amplifier Type: Class-D
• Power Output: 1200W RMS / 2400W Peak
• Controls:
  • 1 x OLED Display with Rotary Encoder
  • 1 x Audio Signal Monitoring LED
  • 1 x USB Port (Service Data)

• Power Connection: VDE Socket
• Cooling: Convection

Processor

• Controller: DSP 56-Bit
• Converter AD/DA: 24-Bit/48kHz
• Limiter: Peak, RMS, Thermal
• Crossover Frequency: 160Hz, LF-MF
• Digital Steering: Far/Near

Miscellaneous

• Enclosure Material: Plywood with Full Metal Grille
• Pole Mount Socket: 36mm (M20 Thread)
• Dimensions:
  • Speaker: 110mm x 460mm x 360mm (W x H x D)
  • Subwoofer: 360mm x 680mm x 545mm (W x H x D)

• Weight:
  • Speaker: 3.3kg
  • Subwoofer: 29.3kg

• Included Accessories:
  • 1 x Distance Pole
  • 1 x Sub Case
  • 1 x Tops Case
  • 2 x 7m SpeakON Cable
  • 1 x 2m SpeakON Cable
