Key Features
- PCI, 24-bit/96KHz Audio Interface
- 2 x universal and 6 x unbalanced analogue inputs
- 8 x balanced analogue outputs
- S/PDIF optical & coaxial I/O
- MIDI I/O, ADAT digital I/O

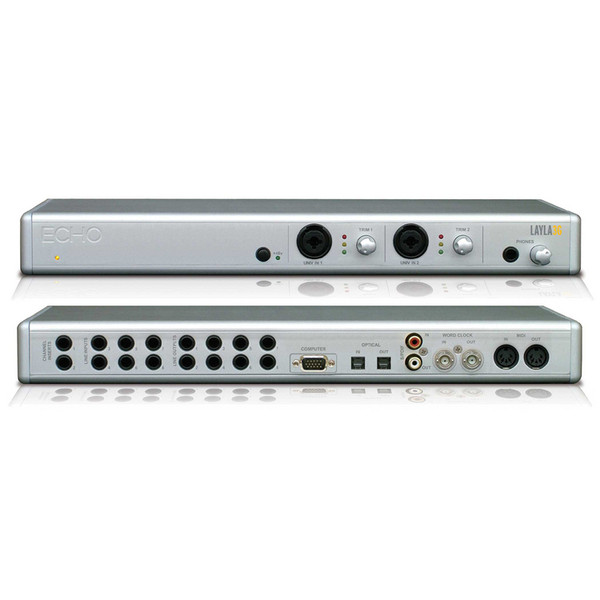

DISC Echo Layla 3G I/O Card Overview
Layla3G is the third generation of our flagship PCI based multitrack digital recorder. The original Layla premiered seven years ago to critical acclaim, including a TEC award nomination. Since then we've been perfecting the art of making high quality recording products at affordable prices. Now you can get all of the features of the Layla24 for a new low price, but with better converters and dual mic preamps!!
Product Ref: 4295
Full Description
View Full DescriptionHardware Features
2 auto-sensing universal inputs (mic/guitar/line)
- Meters, trim knobs, phantom power, & channel inserts
6 balanced ¼" analog inputs
- 113dB (A-weighted) dynamic range
- +4dBu / -10dBV nominal levels
8 balanced ¼" analog outputs
- 114dB (A-weighted) dynamic range
- +4dBu / -10dBV nominal levels

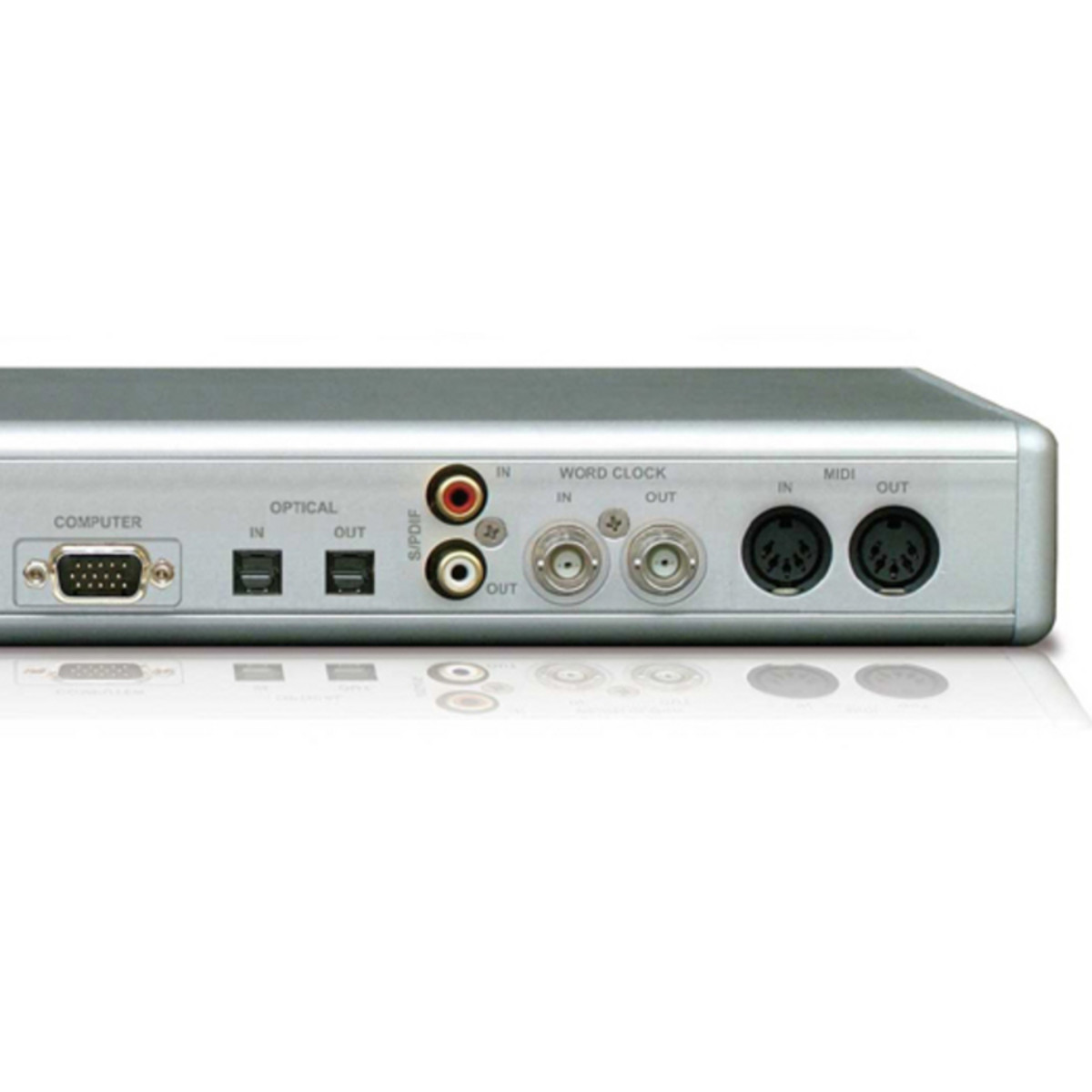

S/PDIF I/O (coax & optical) at 24-bit/96kHz
- ADAT optical digital I/O
- MIDI I/O
- Stereo headphone output with volume knob
- Sync via word, S/PDIF, ADAT, or MTC
- Supports full duplex 16 channel in, 16 channel out operation
- Rack mountable single space breakout box
- Heavy-duty aluminum case
- 15' cable to connect to PC
PCI bus mastering interface
- Bus powered
- Works with PCI-X (3.3/5 volt) & Power Mac G5
A/D & D/A converters in external breakout box
- 56-bit / 100mHz DSP for digital mixing
- Near zero latency hardware monitoring
Software Features
- Software console for monitoring, metering, and setting levels
- Low-latency drivers support all major pro audio software
- Low Latency ASIO 2.0
- GSIF 2.0 (Gigastudio 3 w/ low latency MIDI)
- WDM kernel streaming mode
- CoreAudio & CoreMIDI
- Surround sound support
- 5.1 & 7.1 output w/ delay management
- AC3, DTS, & WMA9 output over S/PDIF
- SuperChannel resource sharing
- Split I/O between multiple applications
- PureWave mode for bit accurate digital I/O
System Requirements
PC
- Windows ME/2000/XP, Windows Vista
- Genuine Intel Pentium or AMD Athlon CPU
- Motherboard with Intel, AMD, Via, or NVIDIA chipset
- 256 MB RAM (512 MB recommended)
Mac
- Mac OS X (10.2 or later)
- G4 or better processor (Power Mac G5 compatible)
- 256 MB RAM (512 MB recommended)
Free software included
Mackie Tracktion gives you a clean, intuitive, and clutter-free interface without losing professional features like drag-and-drop editing, a built-in sampler, VST plug-in support, track freezing and more... all right at your fingertips.
