DISCONTINUED Edirol PCR-300 USB Controller Keyboard

prev next

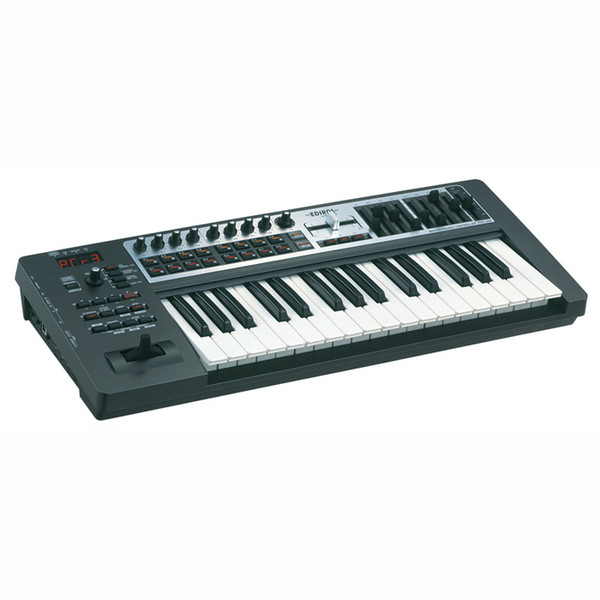

DISCONTINUED Edirol PCR-300 USB Controller Keyboard Overview

Introducing the next generation of EDIROL�s popular MIDI keyboard controllers. In addition to providing more physical controls than previous models, the PCR-300 also offers new innovative and intuitive controls. This controller is solidly built, and optimized for both music production and live performance.

Product Ref: 7290

Full Description

View Full Description

32 velocity-sensitive keys, now with aftertouch

50 fully assignable controls, and editor software (Mac & PC)

18 velocity pads

Keyboard split and layering

New, unique crossfader feature

High-quality keyboard mechanism, and durable, stable body

�Dynamic Mapping� � intelligent assignment of controls

Convenient location of connections on side panel

USB bus-powered

MIDI merge

�Cakewalk Production Plus Pack� included (SONAR LE, Project 5 LE, and Dimension LE)

DETAILS

50 x Assignable Controllers

The new PCR Series offer all the controls of previous models, but with the addition of even more controls that allow players to maximize the playability and operability of their MIDI hardware and software.

Assignable Controls & 18 x Velocity Pads

The new PCR Series has all the existing controls of the previous range, but adds exciting new features, such as velocity pads � perfect for playing drums and triggering sampler phrases. These precision pads can operate as buttons or velocity pads, and the handy LED indicators identify which of the two modes is selected.

Unique Crossfader & Long-Throw Sliders

The new Crossfader allows control of two parameters at the same time, and can be used to control synthesizer filters, DJ gestures and more. The new longer-throw sliders can control eight track faders and one master fader, or function as organ drawbars.

High-Quality Keyboards with Aftertouch

The new ultra-sensitive keyboards provide a wider dynamic range under the player`s fingertips, while new aftertouch sensors allow the keyboardist to play more expressively. Smooth key action, keys shaped for comfortable glissando playing, silent operation, and stable key mounting all contribute to the enhanced playability of these keyboards.

Intelligent �Dynamic Mapping� and Editor Software

Dynamic Mapping allows the PCR to automatically assign its physical controls to the most important parameters (e.g. in the current window of the software being used). Fifteen user memory locations are provided for storing your favorite setups. When using software that`s not compatible with Dynamic Mapping, you can manually configure the Control Map settings from the PCR itself or the included PCR Editor Software (Mac or Win).

SPECIFICATIONS

Keyboard

32 keys (with velocity and channel aftertouch)

Controllers

Pads: [A1]�[A9], [B1]�[B9]

Buttons: [L1]�[L4], [C1]�[C3]

Knobs: [R1]�[R9]

Sliders: [S1]�[S9]

Crossfader: [H1]�[H2]

Foot Pedals: [P1], [P2]

Bender Lever: [BEND], [MOD]

Keyboard Aftertouch: [AFTERTOUCH]
