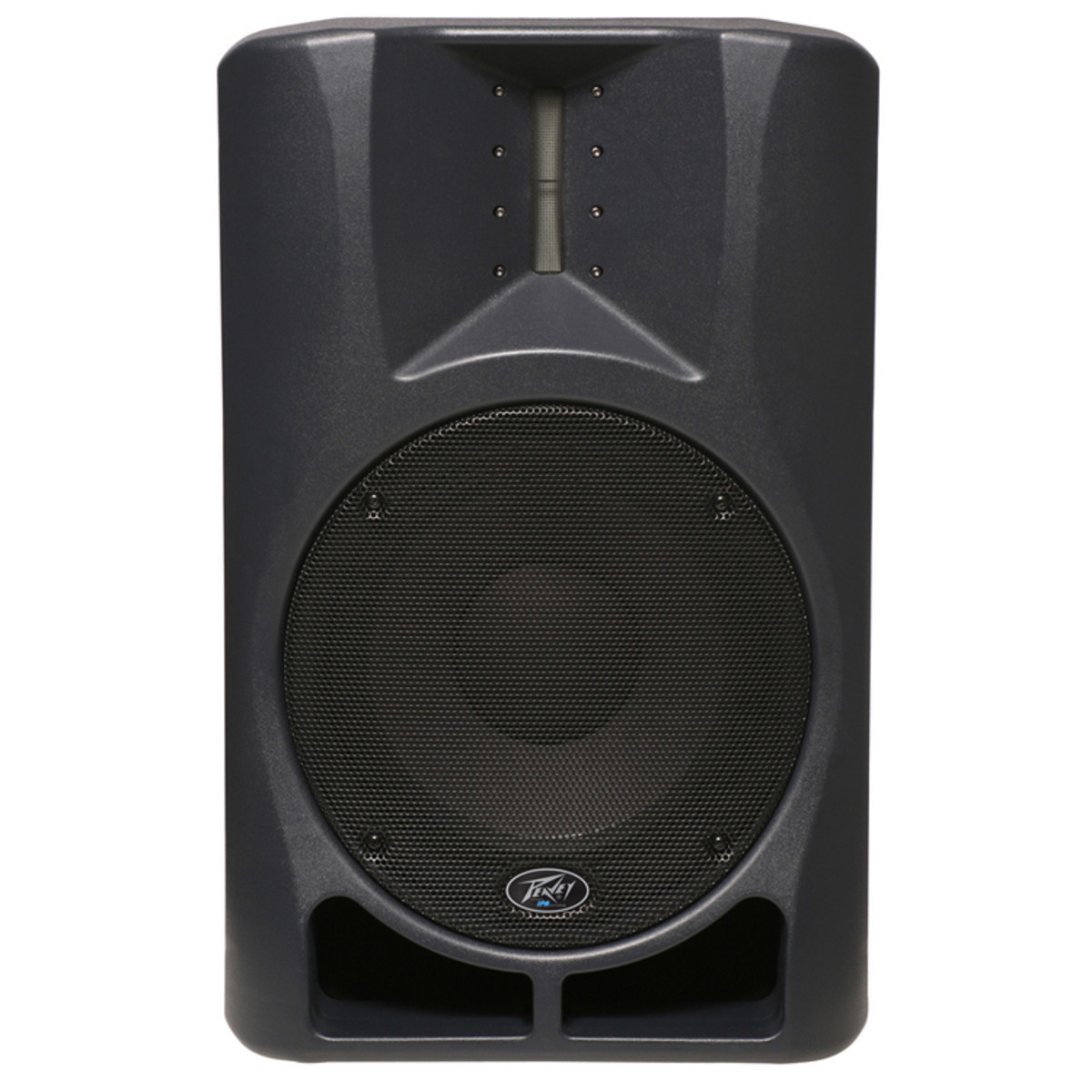

Peavey Impulse 12D 1200w Ribbon Active Speaker Overview
The Impulse 12D powered enclosure features a true ribbon driver and a 12" field-replaceable dual voice coil premium neodymium speaker. A Woofer Servo circuit monitors back-EMF and controls cone motion, ensuring the cone's movement mirrors the driving signal from the power amp, and resulting in very low distortion, high power handling and rock-solid low-frequency attack. The advanced new ribbon driver - an exclusive Peavey design based on the ribbons used in the Peavey Versarray line array - provides 90 degree H x 30 degree V coverage, with sonically transparent reproduction.
Product Ref: 25376
Full Description
View Full DescriptionUtilising Peavey's revolutionary IPR™ power amplifier technology, the Impulse 12D produces 1,200 watts of efficient power while weighing a very lightweight 39 lbs. IPR amplifiers are designed with a lightweight switch-mode power supply and a high-speed class D topology that yields the highest audio resolution and efficiency available.
The Input section features two input channels and a line output, with a mix of I/O options such as combination XLR-1/4" jacks, RCA and install-ready Phoenix connections. Input channels 1 and 2 also have mic/line source switches and gain controls. The Auto-Off function automatically shuts off the power when it no longer detects a signal, while the Line Out allows the user to chain multiple units or send the input signal to another source.
The DynaQ™ section offers advanced tone controls such as Bass Enhancer, which is an overall loudness boost; a Music/Speech switch that provides optimised EQ settings for each audio type; and Contour, specially configured for program music. A module bay allows for future expansion including Wireless I/O, Delay/Time Adjustment, Mixer Expander, Ethernet I/O and more.
The Impulse 12D is housed in a durable, injection-moulded enclosure that includes a pole mount, three flying points and a tilt-back design to facilitate use as a personal monitor.
Features/Specifications:
- Auto off control
- Two independently mixed input channels, with level controls and mic/line switch
- 12" field-replaceable dual voice coil premium neodymium speaker
- Two-way, bi-amplified, optimised active servo drive loudspeaker system
- Proprietary 120 mm ribbon driver on a low-coloration wave guide
- Combo XLR-1/4" and Phoenix connectors on channel 1
- Combo XLR-1/4" and RCA connectors on channel 2
- XLR, 1/4" TRS and Phoenix outputs on Line Out
- Woofer Servo technology
- Exclusive DDT™ anti-clipping protection
- Bass Enhancement circuit provides automatic equal loudness compensation
- Mounting bay for optional input function modules
- Rugged polypropylene moulded enclosure with tilt-back design for monitor use
- Pole mount moulded-in
- Top, bottom and side flying point inserts
- LED control switch: Power/signal/Off
- 1,200 watts from Peavey IPR(YM) power section
