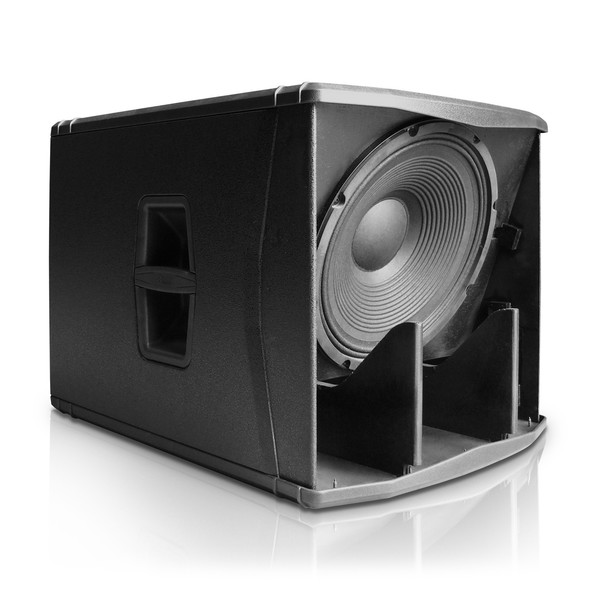

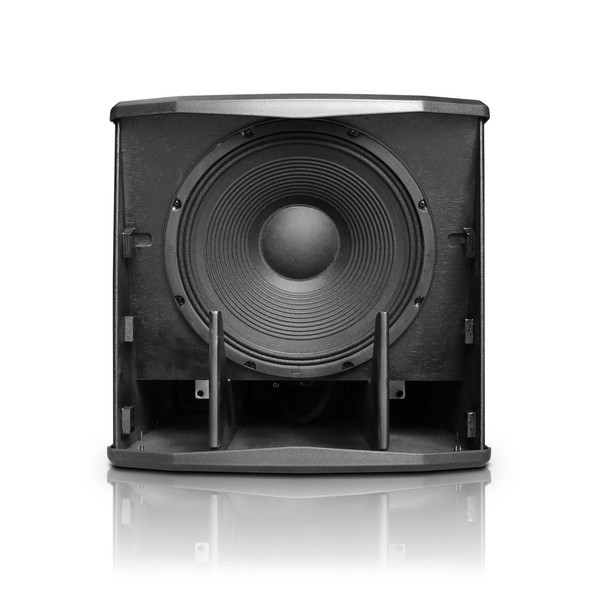

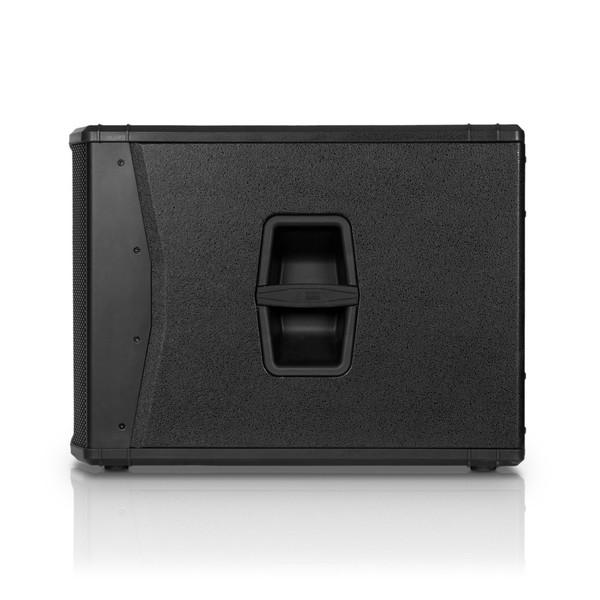

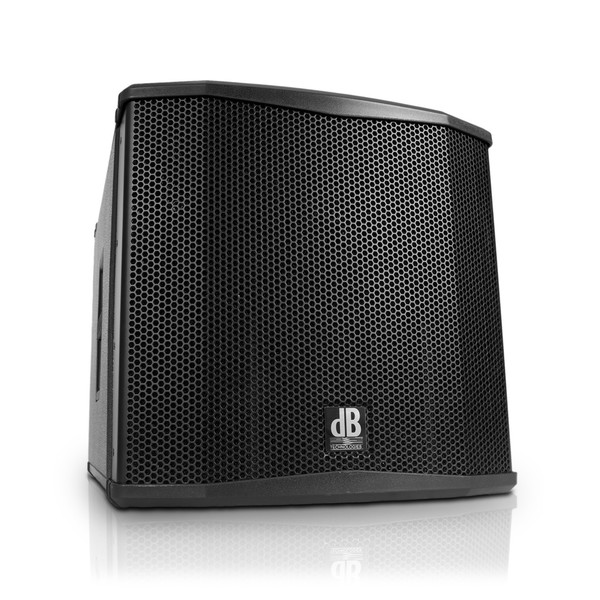

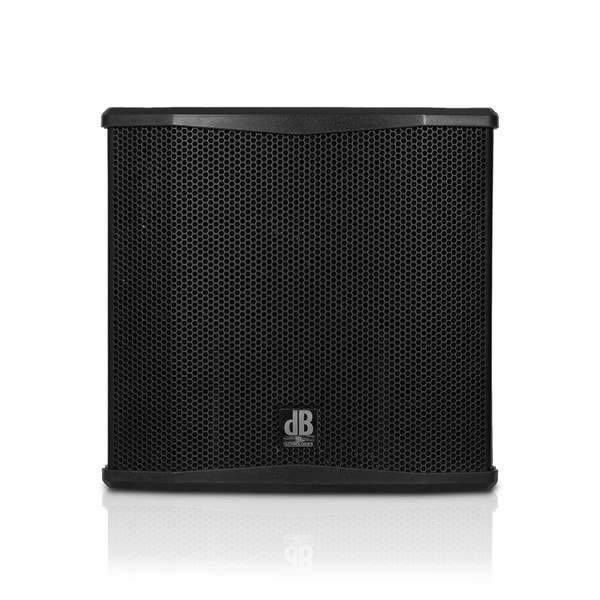

dB Technologies SUB 15H Semi Horn Loaded Active PA Subwoofer

This product is currently not available for purchase

Key Features

  • 1000W Digipro G3 Amplifier With 1400W Peak Power Output
  • Robust Plywood Cabinet With Durable Black PVC Covering
  • 56-Bit DSP & 24-Bit/48kHz A/D Conversion
  • Delay Switch For Up To 4.5ms In 0.5ms Steps
  • 90/120Hz Selectable Crossover Frequency With 24dB/Oct Slope

dB Technologies SUB 15H Semi Horn Loaded Active PA Subwoofer Overview

The dB Technologies SUB 15H is a semi horn-loaded active PA subwoofer with a reliable and intuitive 1000W (1400W peak) Digipro G3 amplifier and a 15'' LF transducer. The amplifier features 56-bit DSP and 24-bit/48kHz A/D conversion, as well as a selectable 90/120Hz crossover with a 24dB/Octave slope, and switches for delay (4.5ms max) and phase-inversion. This hybrid horn-loaded subwoofer ensures exceptional efficiency, even at closer listening distances, making it ideal for a wide range of venue sizes. The digital power supply in the SUB 15H is auto-ranging, allowing easy operation at both 110V and 220V. Housed in a robust plywood enclosure with a durable black PVC covering, the SUB 15H is a road-ready solution boasting incredible low-frequency reproduction.

Product Ref: 110318

Full Description

View Full Description

Features

  • Semi horn-loaded 15'' active subwoofer
  • 1000W Digipro G3 amplifier with 1400W peak power output
  • 56-bit DSP and 24-bit/48kHz A/D conversion
  • Selectable crossover frequency of 90Hz or 120Hz, with 24dB/Octave slope
  • SMPS with PSU auto-range (110V and 220V)
  • Delay switch that enables up to 4.5ms in 0.5ms steps
  • Robust plywood housing with a durable black PVC covering
  • Standard M20 pole-mount plate
  • Maximum SPL of 133dB
  • Excellent performance at a close listening distance

Specifications

Technical & Acoustic Data

  • Speaker Type: Semi Horn-Loaded Active Subwoofer
  • Frequency Response (-10dB): 35Hz - 150Hz
  • Maximum SPL: 133dB
  • Directivity: Omnidirectional
  • LF Driver Diameter: 15''
  • LF Driver Voice Coil: 3''

Amplifier

  • Amplifier Technology: Digipro G3
  • Amplifier Class: Class-D
  • Power PRG: 1000W
  • Peak Power: 1400W
  • Power Supply: 700W SMPS with PSU Auto-Range (110V and 220V)

Processor

  • Controller: DSP 56-Bit
  • AD/DA Converters: 24-Bit/48kHz
  • Limiter:
    • Dual Active
    • RMS/Peak
    • Thermal
  • Crossover Frequency: 90, 120Hz
  • LF-Xover Out Slope: 24dB/Octave

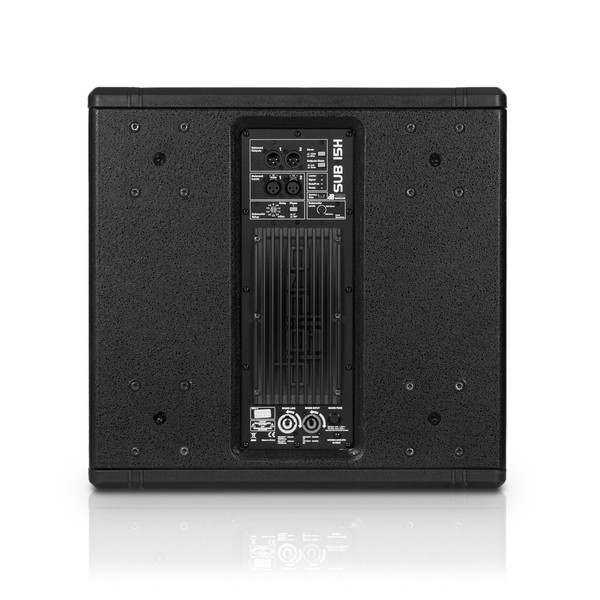

  • Controls:
    • X-Over Frequency Selection
    • Delay Switch (up to 4.5ms)
    • Phase Inversion Switch
    • Outputs Mode Switch (Link/X-Over)
    • Mini-USB Type 'B' Port (Service Data)

    Connectivity

    • Signal Input: 2 x XLR
    • Signal Output: 2 x XLR X-Over Out/Link Out

    Physical Specifications

    • Housing: Plywood, Black PVC Cover
    • Width: 20.6'' / 524mm
    • Height: 20.1'' / 511mm
    • Depth: 27.4'' / 695mm
    • Weight: 69.4lbs / 31.5kg
