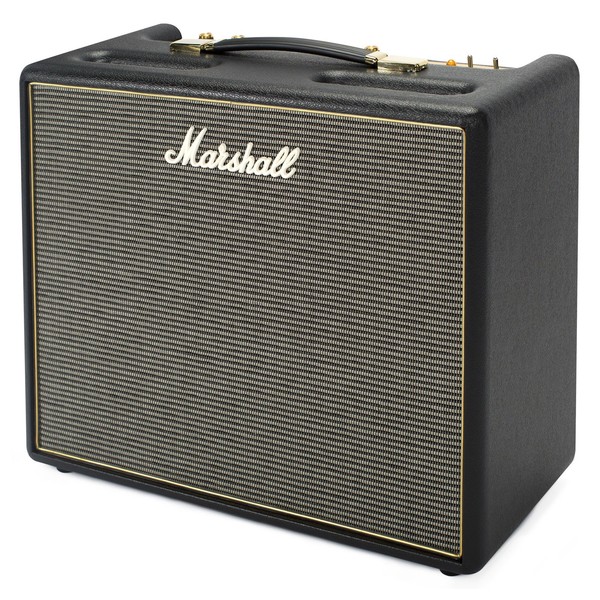

Marshall ORI20C Origin 20 Combo

Full Description

Classic Marshall design

The ORI20C Origin Combo Amp is designed to offer an unmistakable Marshall performance and tone, equipped with ECC83 preamp and EL34 power valves to deliver a beautifully rich harmonic content and exceptional tonal quality. Its single 10'' Celestion V-Type speaker provides the Origin Amp with an authentic Celestion performance, offering the perfect blend of modern and vintage sounds for a sweet tonal character. Its superbly balanced tonal quality delivers pristine cleans across the lows, mids, and highs, with enough upper-mid chime and HF sparkle for extra clarity and definition. To finish off its incredible capabilities, the 20W Marshall Origin is also equipped with a footswitch input for external control over the amp's functions, an FX loop for further tonal enhancements, and a DI output with loudspeaker emulation for connecting the Origin Amp directly into recording devices and sound desks.

Powerful tone controls

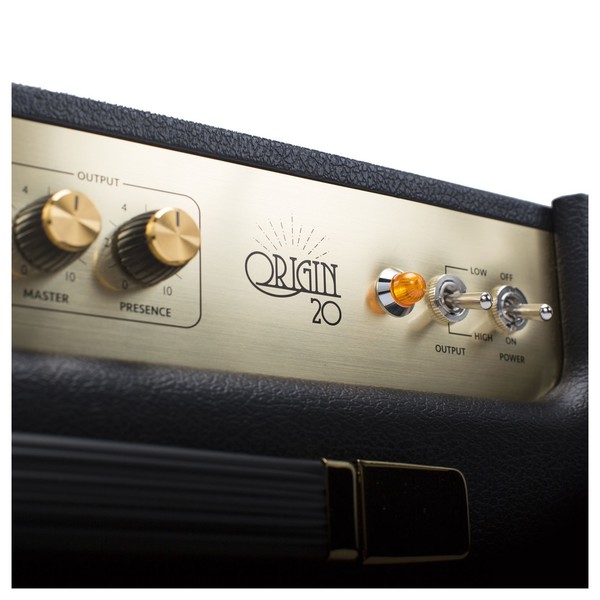

The Marshall Origin Amp's intuitive control layout offers players the perfect level of control over the amp’s tone, featuring a powerful 3-band EQ for dialling in the ideal sound for any situation. The output section offers further tone shaping options, with the presence control allowing players to increase the high frequencies while the master volume offers the classic overdriven sound. Although the Marshall Amp is only one channel, the addition of the tilt control provides access to two distinct voices, normal and high treble. This amp also features a footswitchable gain boost, which can be activated by pulling the gain control, to provide players with an extra level of gain to generate a classical Marshall tone.

Marshall’s power reducing technology

For the Origin series of amps, the engineers at Marshall equipped them with their incredible Powerstem technology, offering the choice between low, medium, and high output power settings without compromising sound quality. This is achieved by reducing the voltage rails around the power amp, instead of the tradition pentode/triode reduction methods. This in turn reduces the power output without changing the amp’s sonic character, offering optimum tones and performance at any volume level.

Features

• Designed to be Marshall’s ''most expressive'' amplifiers
• Single channel vintage-style amp
• Single high performance 10'' Celestion speaker
• Driven by ECC83 (12AX7) preamp and EL34 power valves for a true ‘British’ sound
• Powerstem power reducing technology offers high, medium, and low output settings
• Powerful 3-band EQ provides incredible tone shaping
• Tilt control lets players blend sound between normal and treble voices
• Presence control increases high frequencies
• Master volume provide that classic overdrive sound
• Footswitchable gain boost offers extra level of gain

Specifications

General

• Product Code: ORI20C
• Model: Origin20C
• Range: Origin
• Technology: Valve
• Channels: 1
• Accessories: PEDL-90016 Footswitch, Detachable Power Cable

Electronics

• Output Wattage: 20W
• Controls: Gain, Boost, Tilt, Bass, Middle, Treble, Master, Presence, Power Scaling
• Outputs: 3 x 1/4'' Jack Sockets (16-Ohm Load / 8 Ohms Load), DI Out
• Inputs: 1 x 1/4'' Jack Instrument Input, Footswitch
• Effects Loop: Send/Return

Speaker

• Speaker Configuration: 1 x 10''
• Speaker Model: Celestion V Type (16-Ohm, 30W)
• Unit Impedance: 16-Ohm

Valves

• Preamp Valves: 3 x ECC83
• Power Amp Valves: 2 x EL34

Dimensions

• Width: 520mm
• Height: 420mm
• Depth: 240mm
• Weight: 13.9kg
