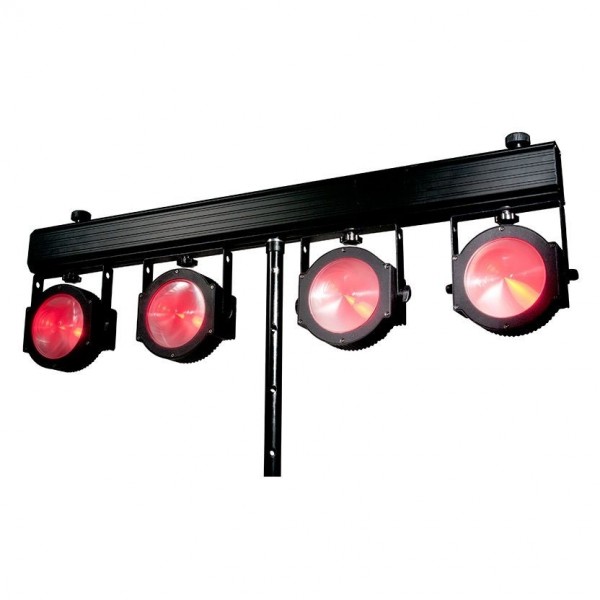

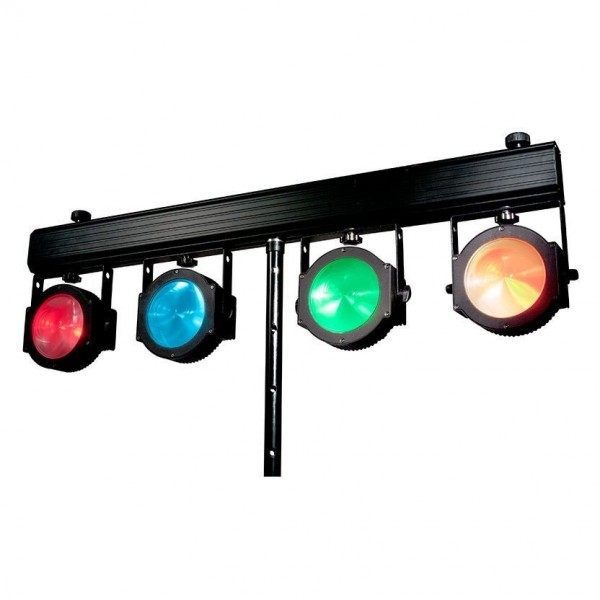

Eliminator Dotz Tpar Sys Plus

Full Description

Powerful and smooth colour mixing

The COB LED technology in the Dotz TPar Sys Plus ensures smooth RGB colour mixing without shadows. This creates vibrant, seamless colour transitions, perfect for dynamic stage lighting.

Versatile control options

With a foot controller, RF remote control, and a digital DMX display, you can easily adjust your lighting setup to fit your performance needs. Choose from four operational modes and 14 built-in programs to create the perfect atmosphere.

User-friendly and adaptable

The system's 3-pin and 5-pin DMX connections, along with a variety of DMX channel modes, offer flexible setup options. The Pixel Flip feature changes pixel orientation, adding another layer of customisation.

Portable and durable

Designed for mobility, the Dotz TPar Sys Plus includes a sturdy lighting stand, soft cases for the fixtures, and a stand bag. This makes it easy to transport and set up, ensuring you’re always ready for the next event.

What's Included

• 4 x COB LED Par Wash Fixtures

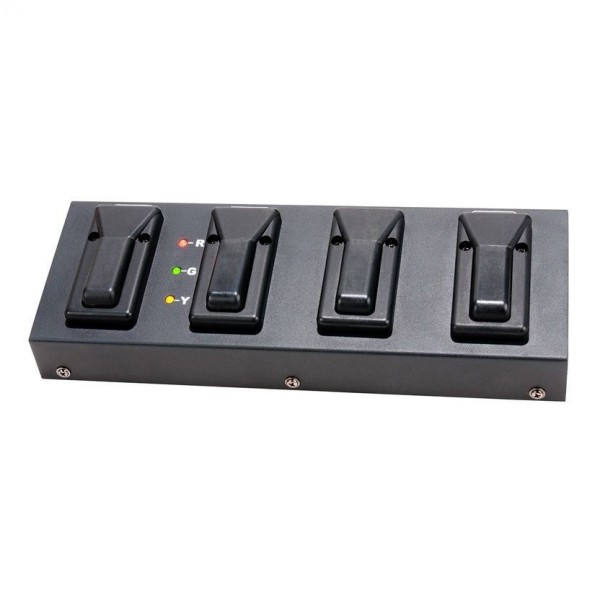

• 1 x Foot Controller
• 1 x Lighting Stand

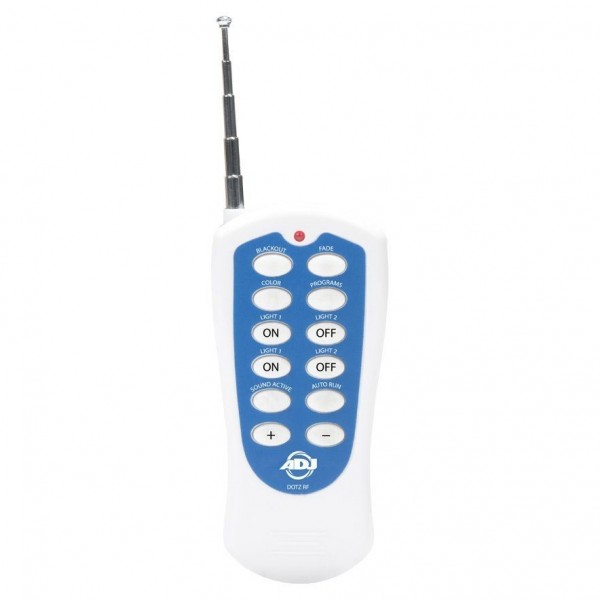

• 1 x RF Remote Control
• 1 x Stand Bag

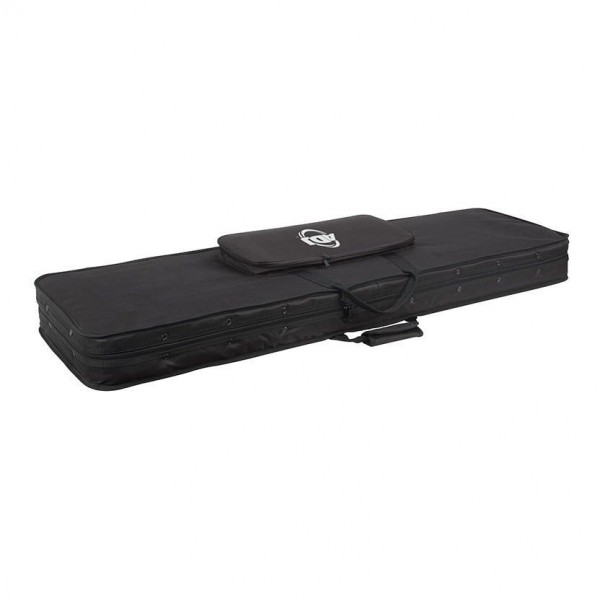

• 1 x Soft case for lighting system
• 1 x 25-degree beam angle lens kit
• Fixture mounting kit
• 1 x 5-pin DMX foot controller cable
• 1 x Power Cord

Features

• COB technology produces powerful, smooth RGB colour mixing with rich palettes of colour and no colour shadows
• Smooth RGB colour mixing with fast or slow colour change operation
• Ideal for stage lighting, bands, night clubs, and mobile entertainers
• Emits less heat on performers on stage compared to conventional stage lighting
• RF remote control with a range of up to 25 meters
• Refresh rate of 3.6KHz

Specifications

• Product Code: 1900000043
• Light Source: Each Fixture Has 1x 30-Watt TRI Colour COB LEDs
• LUX @ 3m: 1345
• Long Life LEDs: Rated At Approximately 50,000 Hrs.
• Beam Angle: 90-Degree
• Electronic Dimming: 0-100%
• Refresh Rate: 3.6KHz
• Multi-Voltage Operation: AC 100V-240V 50/60Hz (IEC Input)
• Power Draw: 144W Max (Entire System)
• Maximum Stand Height: 9 Feet

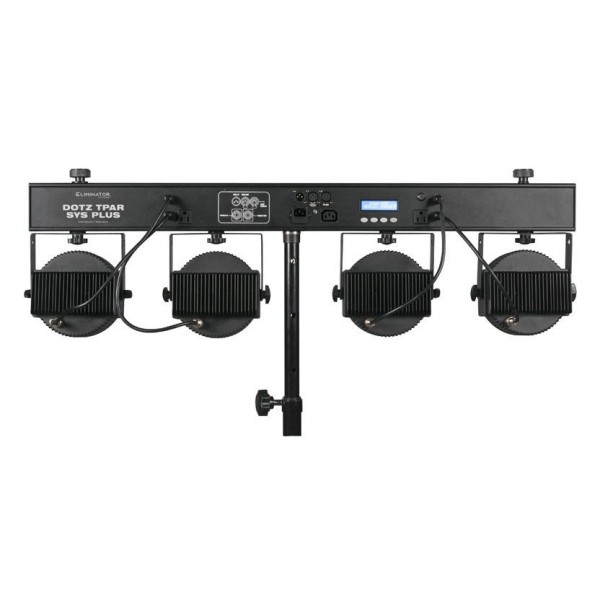

• Inputs: 1 x 3-Pin DMX In, 1 x IEC Power In, 1 x 5-Pin DMX Foot Controller In
• Outputs: 1 x 3-Pin DMX Out, 1 x IEC Power Out
• Dimensions (L x W x H): 39.5" x 12.75" x 3.25" / 1000 x 320 x 82 mm
• Weight: 35 lbs. / 16 kg. (Fixture Bar, Stand and Controller)
