Key Features
- Powerful moving head with endless colour options thanks to 19 x 12W RGBW LEDs
- Adjust the fixture's beam angle between 6 and 50-degrees with motorised zooming
- Diverse integrated control options, as well as DMX control over 2/8/17 or 25 channels
- Pixel zone mapping with three concentric circles of LEDs for unique effects and patterns
- Comes complete with two quick-release Omega clamps for reliable mounting

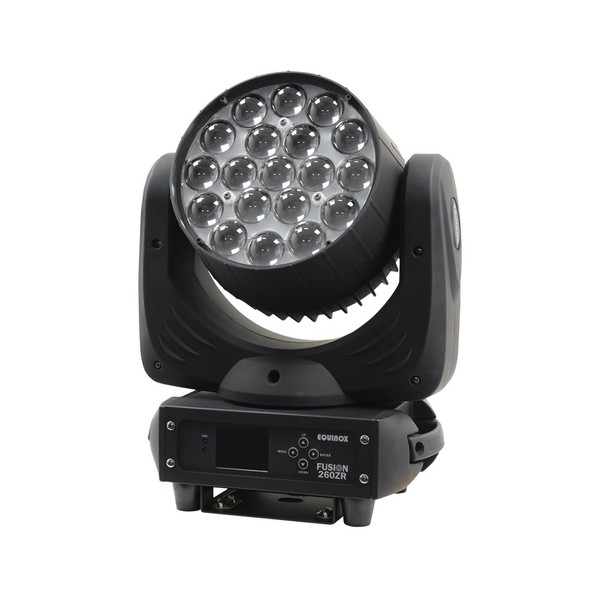

Equinox Fusion 260ZR Moving Head LED Wash Overview
The Equinox Fusion 260ZR is an LED-based moving head wash light for atmospheric lighting to pair with any show. This LED moving head can bathe your audience in washes of vibrant colour, project tight, dramatic beams of light, and create incredible dynamic strobe effects. And it does it all with complete precision.
16-bit pan/tilt positioning with auto-correction means that every movement your Fusion 260ZR makes is exactly the way you want it to be. With in-built programs, DMX, master/slave, and more, this is a fixture that puts you in control. And with an adjustable beam angle with motorised zoom, pixel zone mapping, and smooth 0-to-100-percent dimming, you can take your lightning to the next level.
Product Ref: 147619
Full Description
View Full DescriptionStunning visuals

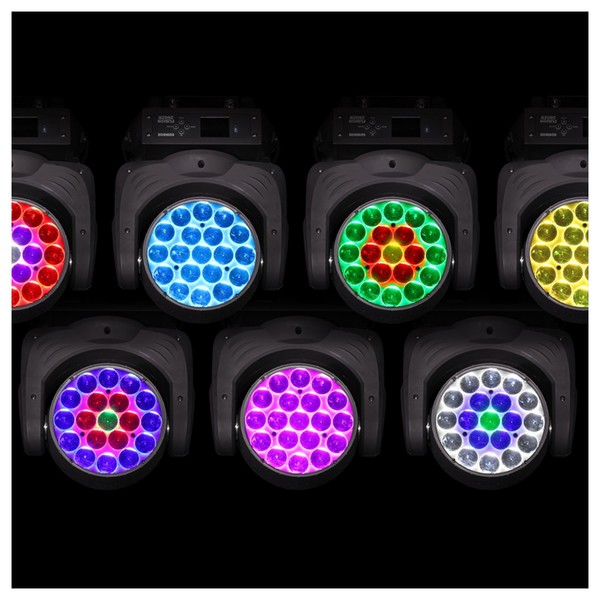

The Fusion 260ZR is designed to create evolving and shifting washes easily. Three circles of LEDs let you quickly blend colours to create distinct hues, concentric areas of colour, and patterned washes. Combine this with its pixel zone mapping that lets you control each circle of lights individually, this moving head can create an incredible range of washes and visual effects.
Fill the room
This moving head wash features an adjustable beam angle from a focused 6° to a sweeping 50°. Paired with a smooth 16-bit movement resolution, 540° pan and 270° tilt, the Fusion 260ZR will fill wide swaths of your venue.
In the Box
- Equinox Fusion 260ZR
- 2 x Omega Clamps
- Power Cable
- User Manual
Features
- Equipped with 19 x 12W quad-colour (RGBW) LEDs
- Capable of producing subtle pastels to rich, saturated colours

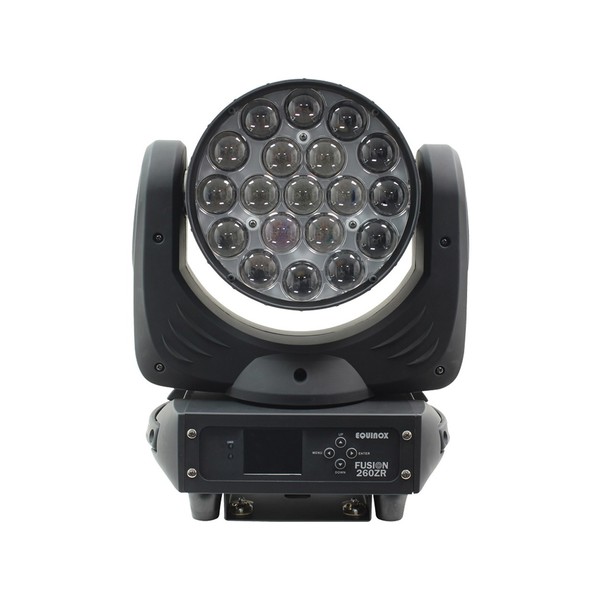

- LEDs arranged in three concentric circles
- Various programming options for stunning colour and pattern effects
- Can create comprehensive washes
- Adjustable beam angle from 6° to 50° with motorised zoom
- 4.5kHz refresh rate makes it ideal for use on camera
- Pixel zone mapping
- Selectable DMX channels - 2/8/17 or 25
- Auto, sound active, and master/slave modes
- 16-bit pan/tilt positioning with auto correction
- 540° of pan, and 270° of tilt
- 0 to 100-percent dimming, and variable strobing

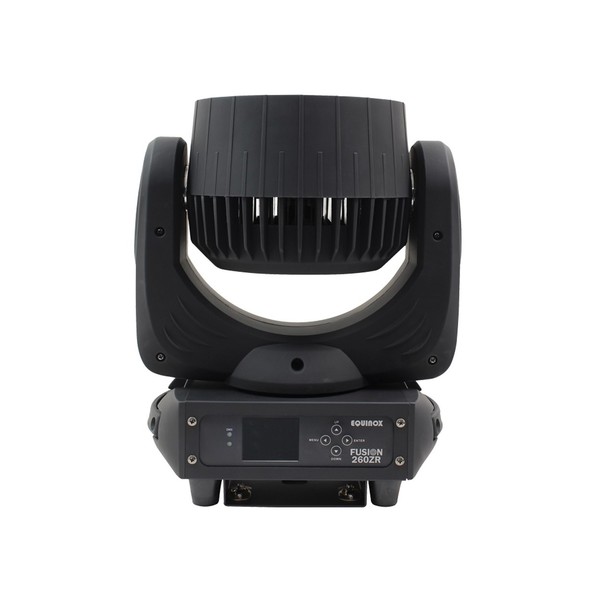

- Easy-to-use LCD display with 4-button menu

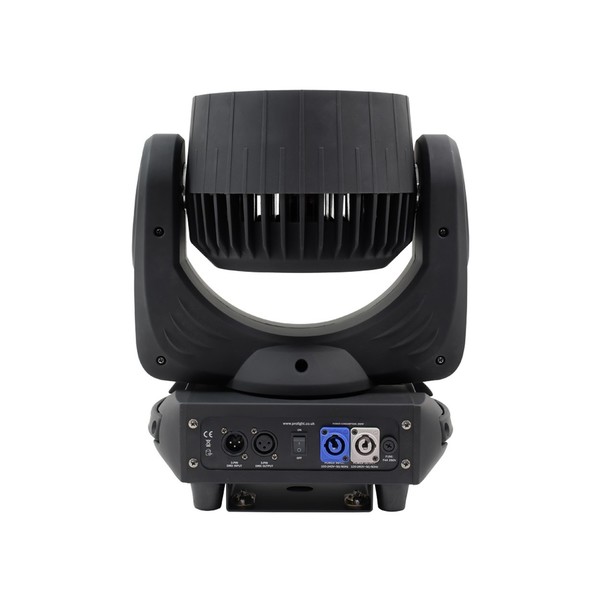

- PowerCON input and output, and 3-pin DMX input and output

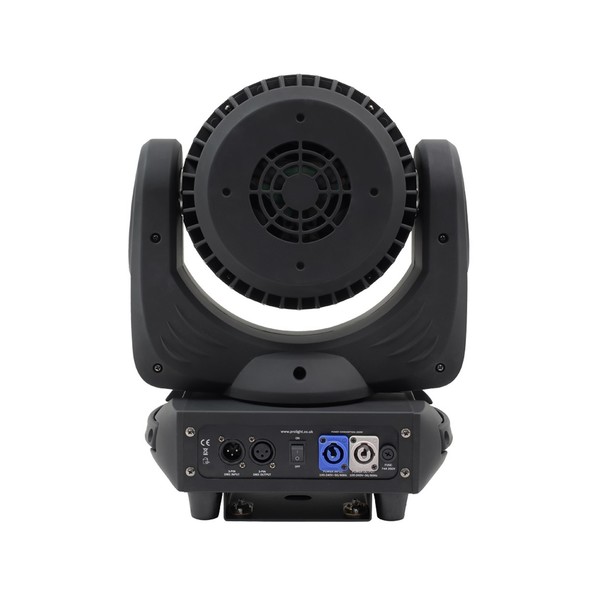

- Fan-cooled design
- Supplied with quick-release omega clamps
Specifications
- Light Source: 19 x 12W RGBW LEDs
- Beam Angle: 6° - 50° (adjustable)
- Lux:
- 6°: 40,098 Lux at 2m (full on)
- 50°: 6,316 Lux at 2m (full on)
- Refresh Rate: 4.5kHz
- Zoom: Motorised
- Pixel Zone Mapping: Yes
- DMX Channels: 2/8/17 or 25 (selectable)
- Operation Modes:
- Auto
- Sound active
- Master/slave
- Pan/Tilt Auto Correction: Yes
- Pan/Tilt Positioning: 16-bit
- Pan: 540°
- Tilt: 270°
- Dimming: 0 to 100-percent
- Strobe: Variable
- Display: LCD with 4-button menu
- DMX Connectors: 3-pin IN and OUT
- Power Connectors: PowerCON IN and OUT
- Cooling: Fan
- Power Supply: 100-240 V, 50/60 Hz
- Power Consumption: 290 W
- Fuse: F4A 250 V
- Dimensions: 414 mm x 324 mm x 221 mm
- Weight: 9.7 kg
