Key Features
- All-in-one PA with 2 x Nano satellites and a 608i 10'' subwoofer
- Integrated 8-channel digital mixer with wireless iPad control
- Pro-grade EQs, compressors and reverb to shape your sound
- Massive sound in a compact and lightweight portable system

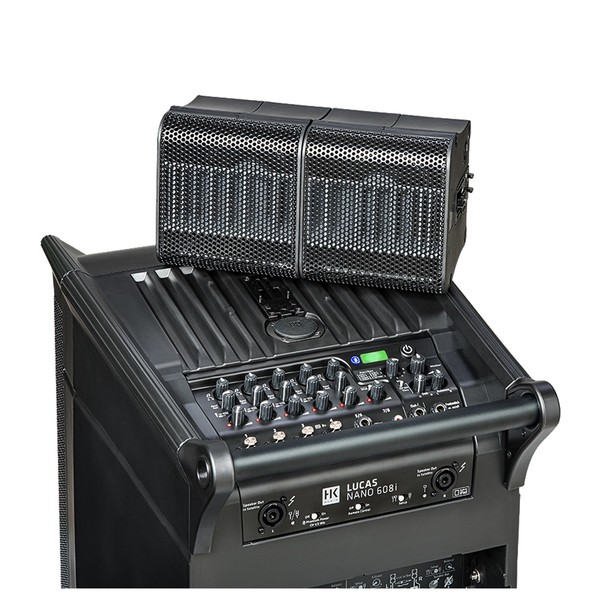

HK Audio LUCAS Nano 608i PA System Overview
Perfect for DJs, bands, fitness, education, multimedia and more, the LUCAS Nano system delivers powerful sound with absolute clarity. The satellite's 90 dispersion angle ensures superior sound quality and intelligibility, even at the back of the room. They also utilise HK's Multicell Transformers, providing crystal-clear highs whilst the subwoofer delivers a rich low-end thanks to unique Anti-Resonance Bracing.
With so much groundbreaking technology in one easy-to-transport complete 2.1 PA system, it's easy to see how the LUCAS Nano has found its legendary status.
Please Note: The HK Audio LUCAS Nano 608i does not include speaker stands or poles.
Product Ref: 70562
Full Description
View Full DescriptionThe LUCAS Nano Series - big sound, tiny footprint
All-in-one PA systems made by combining innovation with years of engineering expertise. HK Audio bring you the LUCAS Nano series, delivering class-leading control and performance in an ultra-compact and lightweight format.
Each LUCAS Nano system provides you with professional features for a wide range of uses. Powerful high-resolution sound with outstanding articulation and authority makes each system perfect for everything from amplifying instruments and vocals to playing all styles of music. With a vast selection of configurations available, you can find a LUCAS Nano system that perfectly fits your needs.Revolutionary technology for outstanding performance
The LUCAS Nano 608i utilises a range of groundbreaking technology to deliver incredible sonic power and crystal-clear audio. Each satellite is equipped with one of HK's Multicell Transformers. These provide superior high-frequency performance, providing a response that is ideal even for large rooms. Combined with the subwoofer and its Anti-Resonance Bracing and precision tuning, the LUCAS Nano 608i delivers a rich, balanced and versatile sound with SPL capabilities of up to 130dB.
Intuitive local and remote control

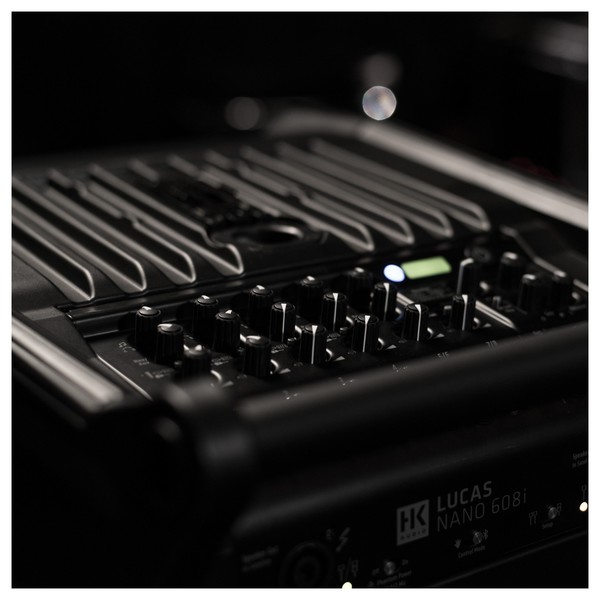

This compact all-in-one PA system is equipped with a built-in iPad-enabled digital mixer loaded with professional features. Shape your sound over eight available channels using pro-grade EQs, compressors, and reverb effects. With an intuitive 'Easy Mode' to make mixing a clean and straightforward process, you can find the perfect sound in an instant.

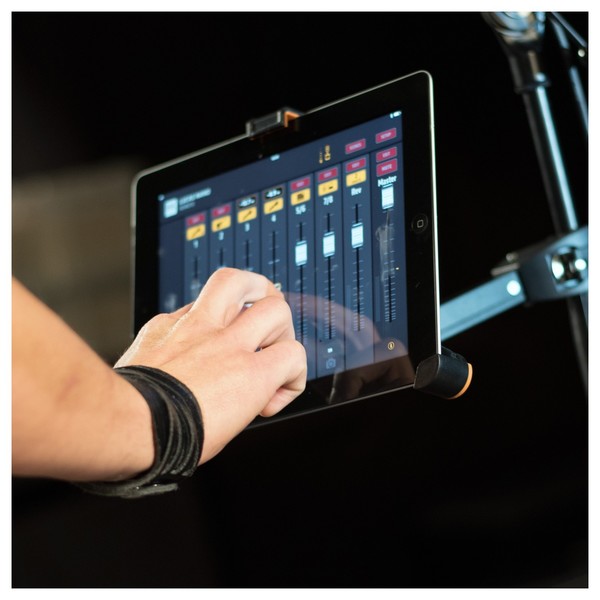

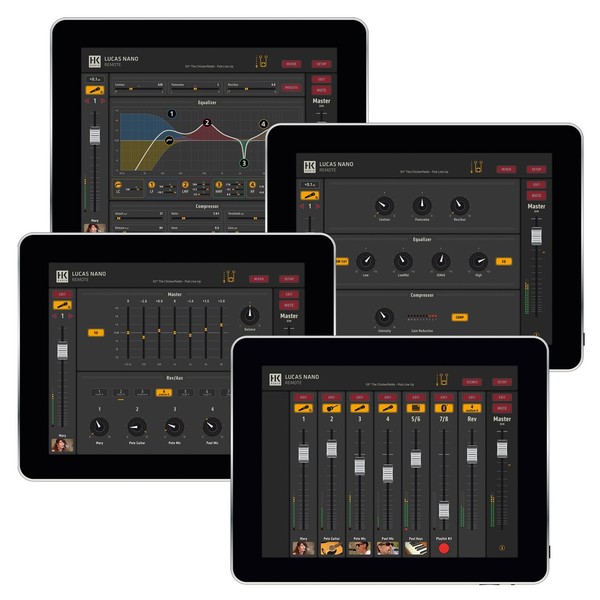

Complete control via the LUCAS NANO REMOTE iPad app enables quick and easy mixing from anywhere in the venue. All of your settings can be saved as presets and loaded at any point. Plus, if you don't have access to an iPad for your show, all of your key functions are accessible straight from the subwoofer itself.Reviews
"Combining wireless control, Bluetooth music streaming and an eight-input mixer, HK’s new compact PA system covers a lot of bases... The HK Audio Lucas Nano 608i provides all PA functionality that a small act might require" - Sound on Sound
"HK’s ultra-compact system with iPad mixer could be a PA to suit all kinds of modern gig situations" - MusicTech
Features
- The first ever compact PA system with an integrated wireless iPad-enabled mixer
- Free app for use with iPad - LUCAS NANO REMOTE
- Eight-channel digital mixer with professional features
- Simple handling
- Assembles in seconds
- Bluetooth audio streaming and wireless connection to the iPad app
- Can be used as a mono PA, a 2.1 setup, or in Twin Stereo
- Two satellites with 4.5'' broadband woofers and 1'' tweeters
- Powerful 10'' subwoofer

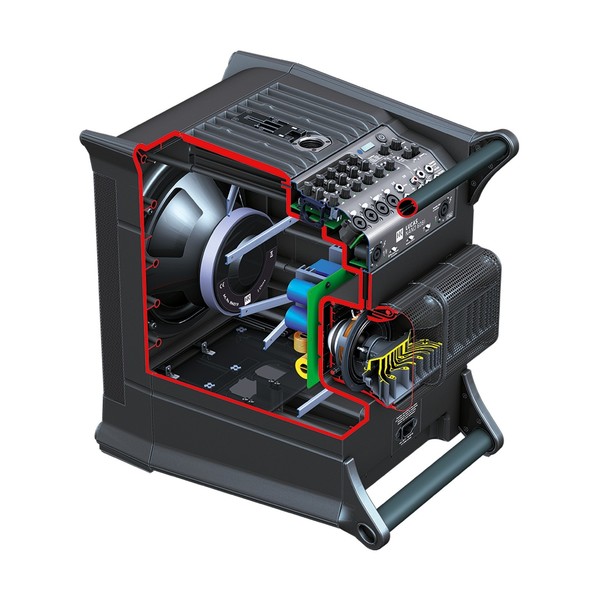

- Low-resonance bass enclosure with Anti-Resonance Bracing
- 130dB maximum system SPL
- Multicell Transformer technology
- 1500W peak power output

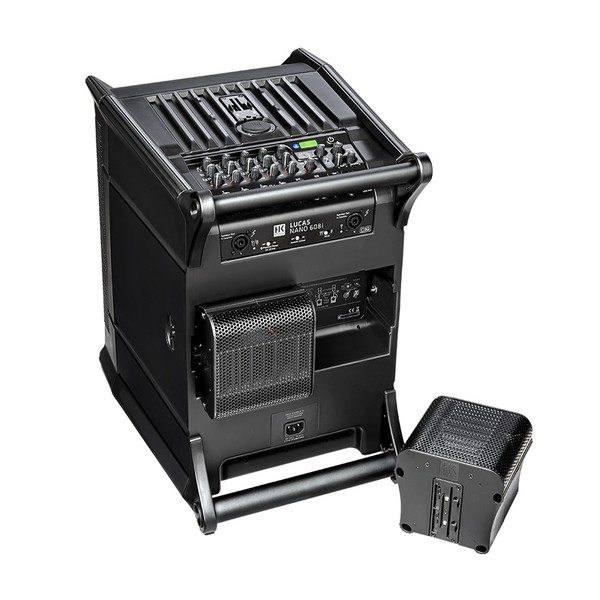

- Transport bay for the satellites located in the subwoofer
- Ultra-lightweight - only 16.3kg
Specifications
System Specifications
- System Class: Portable stereo PA system
- Audience: Up to 120
- Maximum SPL: 130dB (peak)
- Frequency Response: 43Hz - 20kHz (+/-3dB)
- Power Rating: 460W (EIA)
- Amplifier: Class-D
- Active Protection Circuits:
- MultiBand limiter
- Subsonic filter
- Thermo protection
- Overload protection
- Enclosure: Surface-coated polypropylene
- Weight: 16.3kg / 36lbs

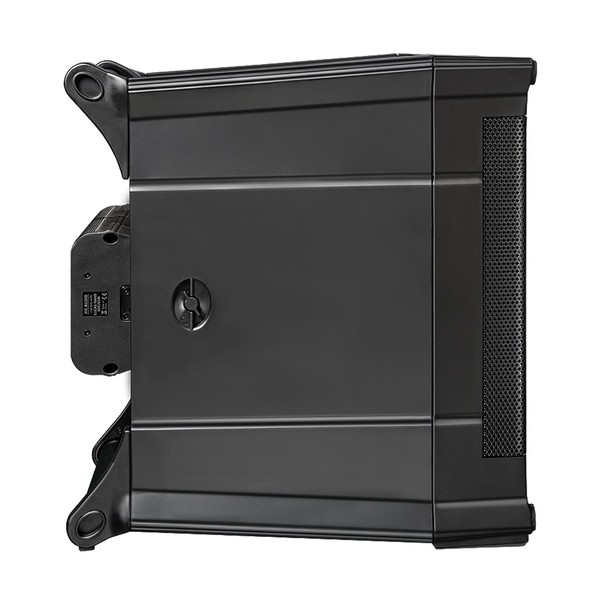

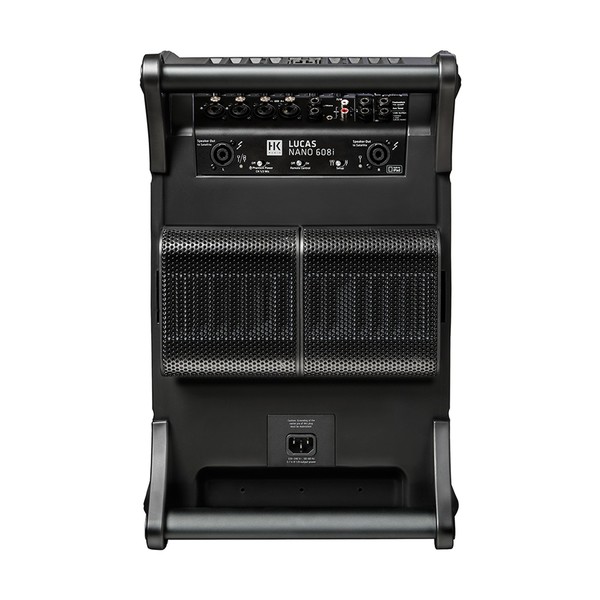

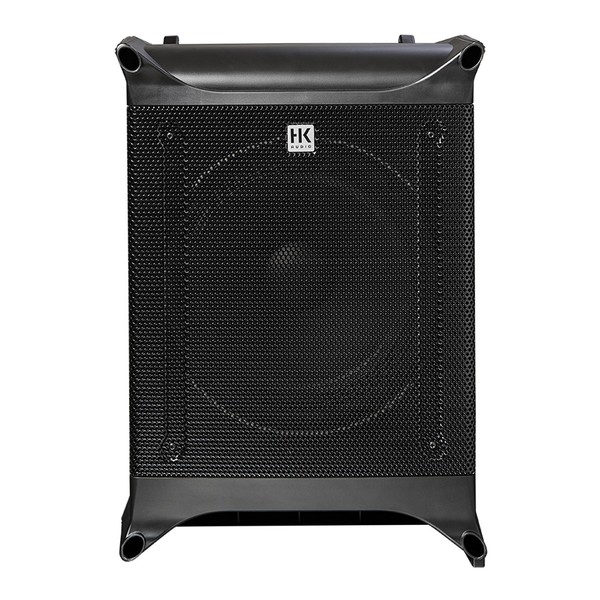

Nano 608i Subwoofer
- Maximum SPL: 123dB at 10 percent THD (halfspace)
- Frequency Response: 43Hz - 190Hz (+/-3dB)
- LF Speaker: 10'' Celestion (custom-made)
- Inputs:
- 4 x XLR-1/4'' combo
- 2 x 1/4''
- RCA/Mini-jack 3.5mm
- Bluetooth audio streaming
- Link IN for Twin Stereo Mode
- Outputs:
- Speaker OUT
- Easy-Click
- Rec OUT
- Footswitch/aux send OUT
- Link OUT for Twin Stereo Mode
- Special Features:

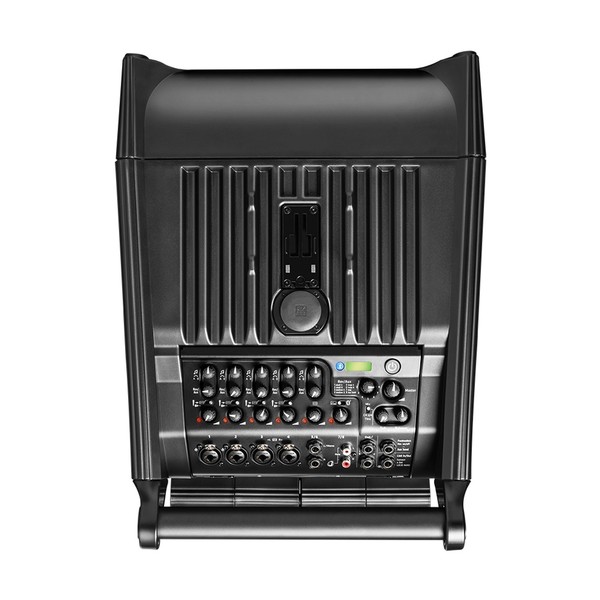

- 8-channel mixer with built-in DSP preamp and effects section
- Bluetooth audio streaming
- Bluetooth remote control for additional DSP functions via the LUCAS NANO REMOTE app for iPad
- Pole Mount: M33 for the (signal-routing) S-CONNECT POLE LN, a speaker pole adapter sleeve (M33 to M20) is included
- Dimensions: 350mm x 490mm x 470mm (W x H x D)
- Weight: 13.9kg / 30.8lbs

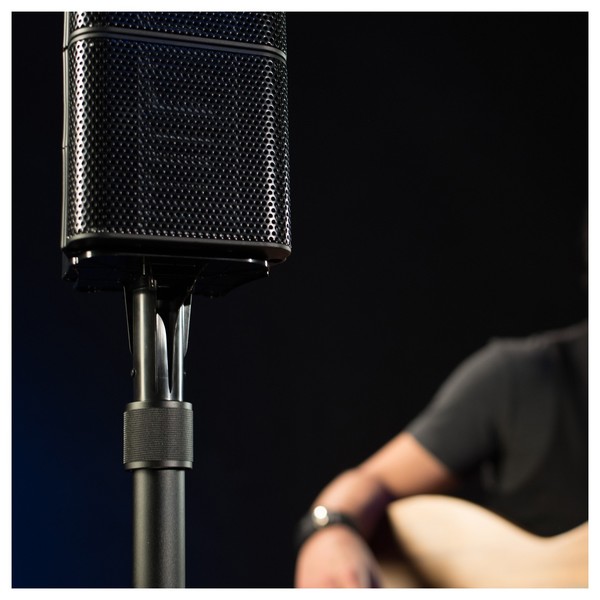

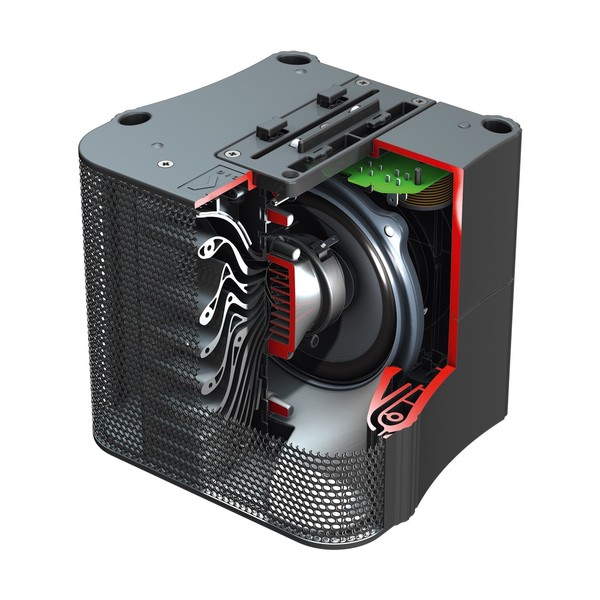

Nano 600 Satellites
Please Note: These specifications are per satellite, specs for each satellite are identical.
- Maximum SPL:
- Single Satellite: 124dB (peak)
- Satellite Array: 130dB at 10 percent THD (halfspace)
- Frequency Response: 190Hz - 20kHz (+/-3dB)
- Mid/High Speaker: 4.5'' Celestion (custom-made)
- HF Driver: 1'' Celestion (custom-made)
- HF Horn: HK Audio Multicell transformer
- Mid/High Dispersion Pattern:
- Single Satellite:
- Horizontal: 90° x +10
- Vertical: -45°
- Satellite Array: 90° x 30°
- Single Satellite:
- Pole Mount: 3/8'' thread
- Dimensions: 145mm x 145mm x 135mm (W x H x D)
- Weight: 1.2kg / 2.6lbs
