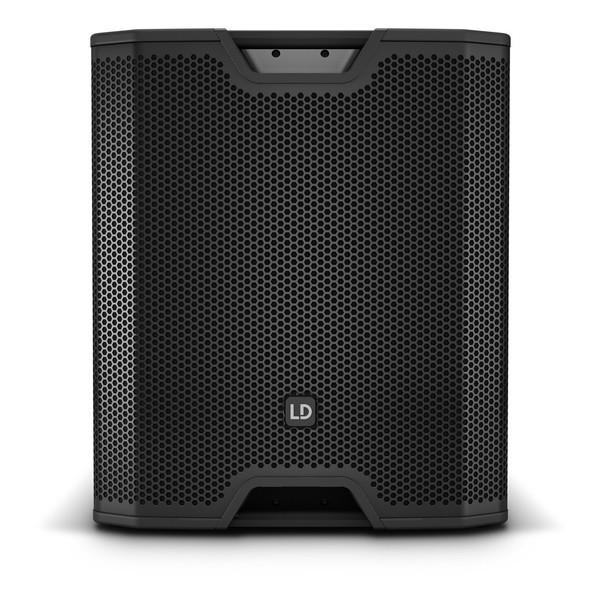

LD Systems ICOA SUB 15A 15" Active PA Subwoofer

Full Description

Powerful performance with advanced DSP

The ICOA SUB 15A features a powerful digital Class D amplifier that drives a peak power of 1600 watts, delivering deep and impactful bass necessary for live music and engaging multimedia presentations. The built-in DynX DSP technology enhances performance with four presets tailored to different scenarios, including three adjustable crossover frequencies and a special cardioid mode for focused bass dispersion. This level of control ensures optimal integration with other PA components and maximizes sound clarity at any volume.

Flexible connectivity and setup options

This subwoofer is designed for ease of use and flexibility in various event spaces. It includes dual XLR/TRS combo jack inputs and XLR outputs for convenient connectivity. The adjustable delay line feature accommodates for distances up to 10 meters, perfect for larger venues. Additionally, the switchable signal polarity and cardioid preset allow for precise setup configurations, improving overall sound quality and reducing unwanted sound spill behind the speakers.

Rugged and portable design

Constructed from durable 18 mm laminated plywood, the ICOA SUB 15A is built to withstand the rigors of touring and regular use. The heavy-duty grill and secure stacking grooves protect the subwoofer while in transit and during performances. For added convenience, the subwoofer is equipped with four ergonomic aluminum handles with rubber surfaces for better grip and handling. The M20 thread atop allows for secure mounting of main speakers with a distance pole, facilitating a tidy and professional setup.

Adaptable to any event

Whether enhancing the bass in a live concert, DJ set, or enriching a lecture or multimedia presentation with powerful low frequencies, the ICOA SUB 15A is an excellent choice for those seeking reliability and powerful performance. Its ability to scale with venue size by adding more units and configuring them for optimal sound direction makes it a versatile asset for growing entertainment needs, ensuring every note and beat is felt by the audience.

Features

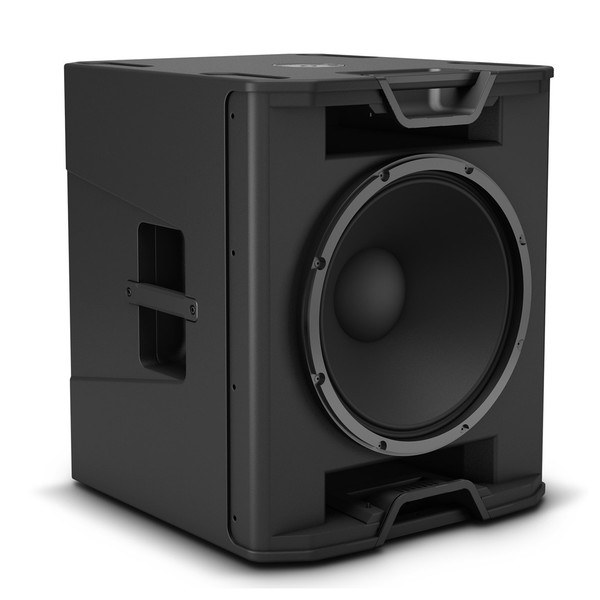

• Powerful low-end up to 36Hz with a custom-made 15” subwoofer
• Huge SPL capabilities with 118dB max. volume
• Massive power for small-to-medium venues thanks to 2400W peak output
• Highly efficient and lightweight digital Class D amplifier technology
• Optimised bass response from specially designed reflex ports
• Best-in-class performance from a DynX DSP
• Easy to setup in a variety of event spaces with four application presets onboard
• Quick and easy to setup with other speakers thanks to switchable signal polarity and adjustable delay line for up to 10 meters

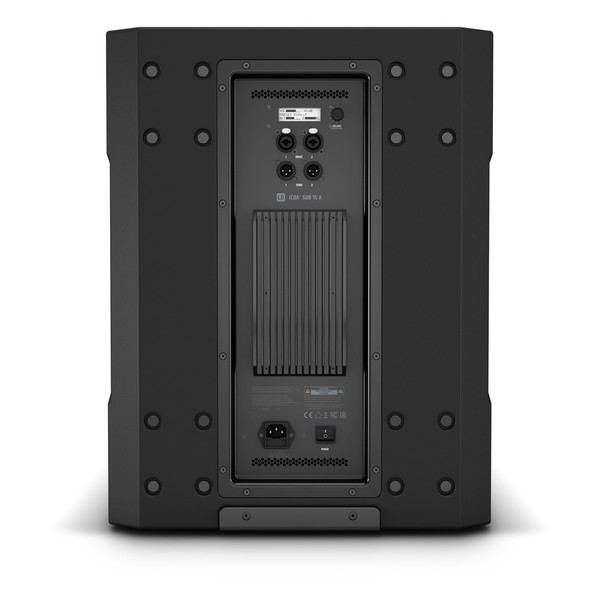

• Pristine signal integrity from two XLR/TRS combo jack inputs and two XLR outputs
• Built for the road with a heavy-duty 18mm plywood housing and dent-resistant grille

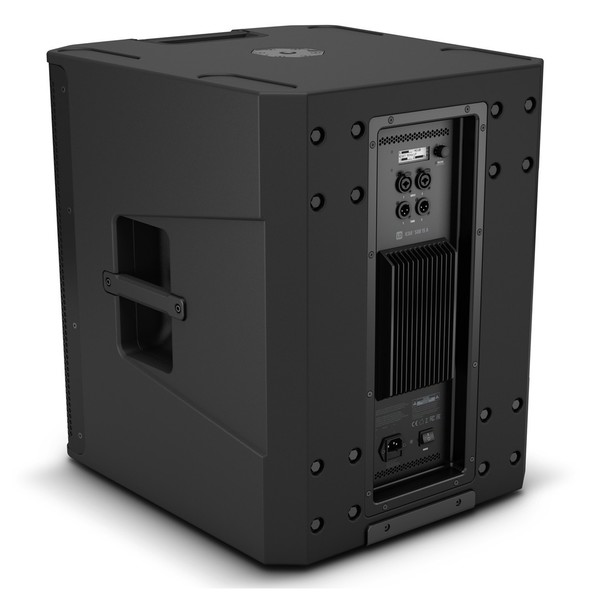

• Easy to carry thanks to four aluminium handles with ergonomic rubber surfaces
• Safely and securely stack your speakers with four stacking grooves
• Mount your sub with ease thanks to an M20 thread for distance pole

Specifications

• Type: PA Subwoofer
• Active/Passive: Active
• Low/mid Driver: 15”
• Woofer Magnet: Ferrite
• Woofer Brand: Custom-made
• Woofer Voice Coil: 3”
• Amplifier: Class D
• RMS: 600W
• Peak Power: 2400W
• Frequency Response (-10dB): 36Hz preset depending
• Max. SPL (peak): 118dB
• Protection Circuits: Excursion Limiter , over voltage , over-current , Peak Limiter , RMS Limiter , thermal overload
• Controls:Push encoder
• Indicators: LC display
• Line Inputs: XLR/6.3mm jack combo jacks (balanced)
• Line Input Connectors: 2
• Line Outputs: XLR
• Operating Voltage: 100 – 240V
• Power Consumption (max.): 675W
• Operating Temp.: 0 – 40-degrees Celsius
• Relative Humidity: (less than) 60 (non-condensing)
• Cabinet Material: 18mm Multiplex
• Cabinet Surface: Textured Paint
• Cabinet Construction: Bass Reflex
• Dimensions: 510mm (W) x 598mm (H) x 552 (D)
• Weight: 32.5kg
