Key Features
- 700W of peak Class-D power with two channels, each with dedicated level controls
- Intelligent protection circuitry prevents damage from short circuits, overheating, and more
- Each channel features a dedicated level control and clip/signal status indicator LEDs
- Efficient and quiet cooling via the integrated temperature-cooled fans
OFFLINE IMG Stageline STA-400D Stereo Class-D PA Amplifier Overview
Power your PA with confidence. The IMG Stageline STA-400D provides you with up to 700W of clean, efficient Class-D power. With two channels, each featuring dedicated level controls and Clip LED indicators, you can make sure your signal remains optimised with ease. The STA-400D also features Neutrik SpeakON output connectors, and can be used in 4 or 8 Ohm configurations.
Intelligent protection circuitry keeps everything working safely from start to finish. You don't have to worry about short circuits or overheating causing damage to your equipment. A handy front-panel Protect LED will show you when the protection circuitry is active. So you always know what's going on with your power amp.
Product Ref: 156073
Full Description
View Full DescriptionFeatures
- Class-D concept with power amplifier modules from HYPEX
- 482mm (19'') rack-mountable design (1 rack space), with supplied mounting brackets
- Silent operation thanks to temperature-controlled fans
- Lightweight design with a compact switch-mode power supply
- Energy-efficient operation thanks to a high-efficiency design
- Large buffer capacitors (high power reserves) provide powerful bass reproduction
- Equipped with two dedicated level controls
- Protected against short circuit and overtemperature
- LEDs provide visual indication of power, overload (clip), and protect
- Rugged and reliable Neutrik SpeakON speaker connectors
- Super slimline chassis
Specifications
- Peak Output Power: 700W
- RMS Power Rating: 540W
- At 4 Ohms: 2 x 270W
- At 8 Ohms: 2 x 180W
- Channels: 2
- Inputs: 1V/12k Ohms (XLR, bal.), 1V/4.7k Ohms (RCA)

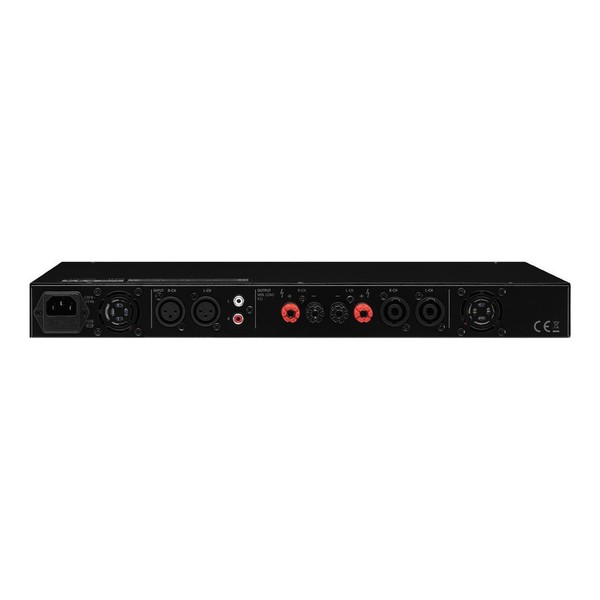

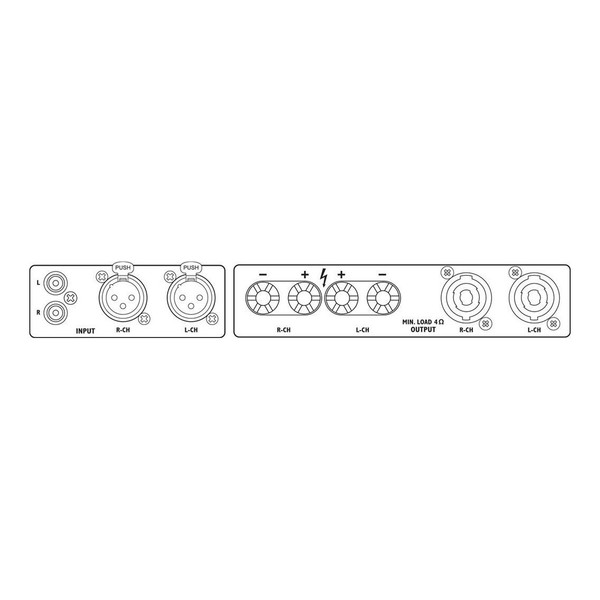

- Connectors:
- 3-pole XLR L/R, stereo inputs
- RCA L/R, stereo inputs
- 2 x pairs of screw terminals, outputs
- Neutrik SpeakON L/R, stereo outputs
- Frequency Range: 20Hz - 20kHz
- Integrated Limiter: No
- S/N Ratio: Greater than 110dB
- THD: Less than 0.02-percent
- Power Supply: 230V, 50Hz
- Power Consumption: 600VA
- Rack Spaces: 1
- Dimensions: 482mm x 52mm x 277mm (W x H x D)
- Weight: 3.5kg
- Product Code: STA-400D
