Shure BLX14/CVL-T11 Wireless Lavalier Microphone System

Full Description

So how do I get set up?

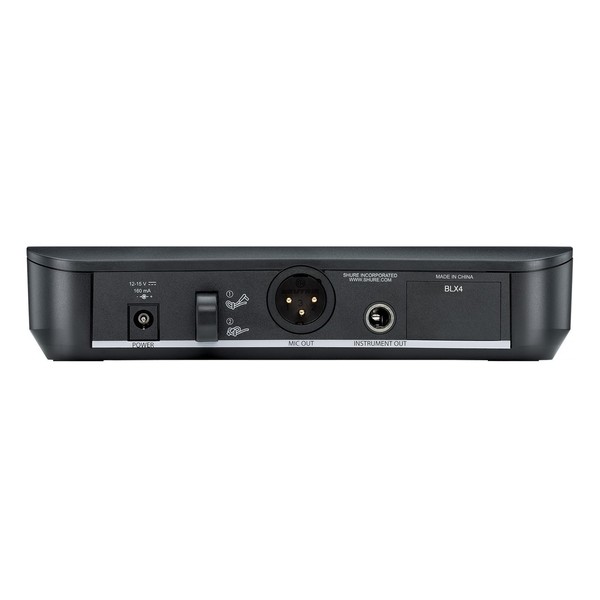

It's simple. Plug the mic output (found on the back of the receiver) into a channel on your mixing desk. Just like a normal wired mic.

Press the group button on the receiver to perform a Quickscan. This searches your environment to locate the clearest frequency for your performance.

Finally, 'pair' the bodypack transmitter to the receiver, by using the transmitter's group and channel buttons. The 'ready' LED on the receiver will light up. And it's as easy as that! You can now perform with wireless freedom.

CVL-B/C-TQG Miniature Lavalier Microphone

Precision engineered for maximum performance. The Shure CVL-B/C-TQG Miniature Lavalier Microphone is the perfect choice for presenters. With a frequency response that has been tailored specifically for speech in public speaking and presentation applications, this high-quality microphone provides crystal-clear vocal reproduction. And with its compact design, it's easy to hide when worn too.

The CVL-B/C-TQG simply clips to your clothing with the included tie clip, and can be connected to any Shure wireless bodypack system thanks to the TA4F (TQG) connector. This discrete lav mic rejects unwanted background noise, whilst the included windscreen reduces plosives as well as wind and breath noise. For the cleanest, purest sound possible.

Comprehensive monitoring

With a Shure BLX14 System, you get wireless freedom with total peace of mind. The receiver’s ‘ready’ LED will tell you when your system is set up and secure. You don’t need to worry about signal dropouts.

If the channel starts clipping, an LED switches from green to red, letting you know if you should activate the transmitter's -10dB gain control. There is even an LED monitor to tell you when the batteries are running low on the transmitter. Everything is clear and simple, for effortless setup straight out the box.

Legendary Shure durability

Boasting the tour-tough construction Shure are revered for.

The BLX14E/CVL-T11 has been rigorously tested to make sure it can handle any environment. All Shure wireless systems are subject to heat, cold, humidity and the ‘Shure drop test’. They are built to survive the demands of life on the road. They're ready for every performance.

Included Within The System

• 1 x Shure BLX4 Analogue Single Channel Receiver
• 1 x BLX1 Bodypack Transmitter
• 1 x CVL Lavalier Condenser Microphone
• 1 x Swivel Adapter
• 1 x Tie Clip
• 2 x Windscreen

Features

CVL Lavalier Condenser Microphone

• Miniature clip-on lavalier microphone
• Can be worn with minimal visibility
• Reproduces your vocals with outstanding clarity
• Tailored frequency response for speaking and presentations
• Cardioid polar pattern rejects unwanted noise
• Permanently charged electret condenser element
• TA4F (TQG) connector for use with any Shure wireless bodypack
• Legendary Shure engineering for maximum durability and performance
• Included windscreens reduce plosives, wind, and breath noise
• Also includes a tie clip to allow for handsfree use

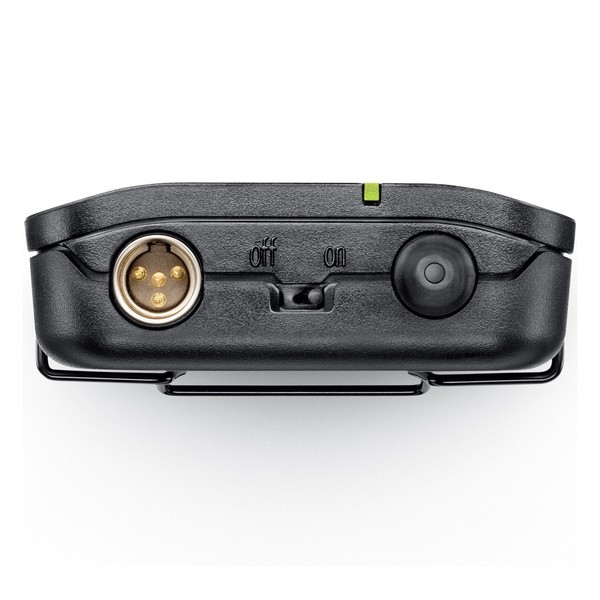

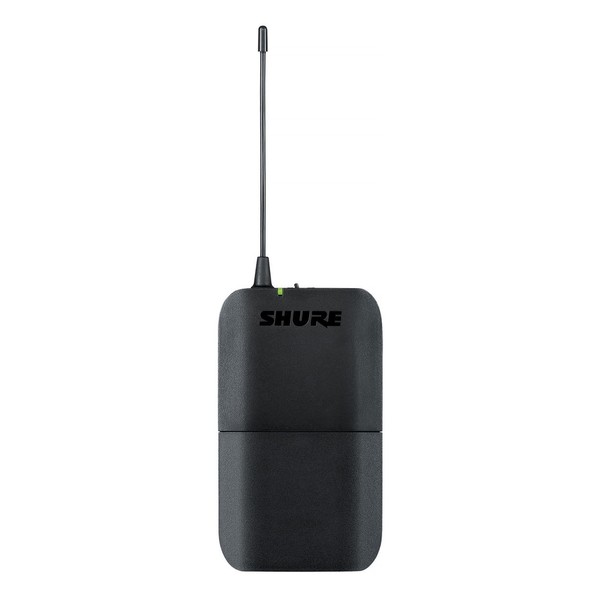

BLX1 Body Pack Transmitter

• 14-hour run time and a 100 meter range from one pair of AA batteries
• Quick and easy frequency matching
• Continuously adjustable gain dial
• Easily accessible on/off switch
• Power & battery status LED
• Clip-on design easily attaches to performer
• Lightweight, comfortable and discrete build
• Rugged and robust - built for rigorous live performances
• TA4F (TQG) connection for use with Shure headset, lavalier, instrument mics and guitar cables

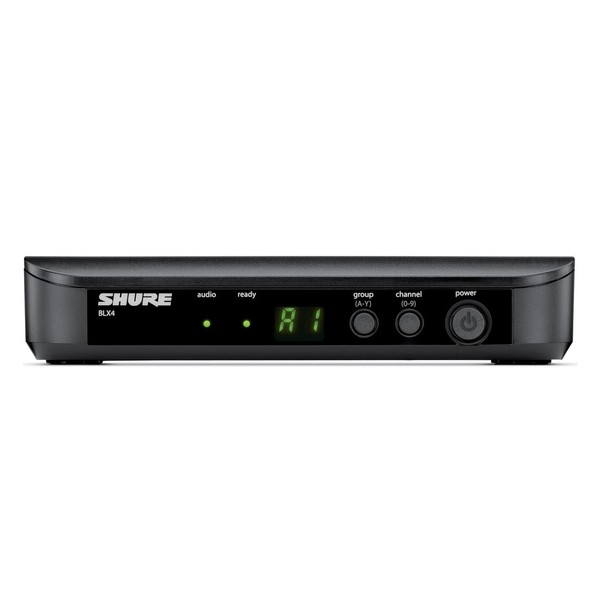

BLX4 Single Channel Receiver

• User friendly and intuitive design – no complicated setup options
• One touch QuickScan finds the best open frequency for uninterrupted signal
• Internal microprocessor-controlled antenna keeps the unit discrete and compact
• Two colour LED for monitoring signal level
• Compatible with up to 12 other systems
• XLR & 1/4" audio outputs

Specifications

BLX14/CVL System

• Set Type: Presenter
• Amount Of Bodypacks: 1
• Amount Of TQG Mics: 1
• Number Of Compatible Systems Per Frequency Band: 12

CVL Lavalier Condenser Microphone

• Connector: TA4F (TGQ)
• Microphone Type: Electret condenser
• Frequency Response: 50Hz - 20kHz
• Polar Pattern: Cardioid
• Output Impedance: 600 Ohms (at 1kHz typical)
• Audio Output Level: -43.5dBV/Pa
• Signal-to-Noise Ratio: 72dB (at 1kHz)
• Maximum SPL: 139dB (1000 Ohm load, at 3-percent THD)
• Dynamic Range: 117dB (at 1kHz, 1000 Ohm load)
• Equivalent Output Noise: 22dB (typical, A-weighted)
• Power Requirements: +5V DC (nominal), 10V maximum (DC bias)
• Cable Length: 1.3m
• Weight: 25g

BLX1 Body Pack Transmitter

• Connector Type: TA4F (TGQ)
• Operating Range (Up To): 100 m
• Batteries: AA (included)
• Battery Life: 14 hour
• Battery Status: Multi-Colour LED
• Transmitter Housings: Molded ABS
• Gain Adjustment Range: 26 dB
• Included Antenna: 1/4 Wave
• Input Impedance: 1 MΩ
• Weight: 75 g
• Dimensions (H x W x D): 110 mm x 64 mm x 21 mm

BLX4 Single Channel Receiver

• Transmission: Analog
• Power Supply: External
• Receiver Type: Single
• Number Of Compatible Systems Per Frequency Band: 12
• Receiver Displays: LEDs
• Housings: Molded ABS
• Scan Features: Quick Scan
• Rack Hardware: Optional URT2
• Image Rejection: 50 dB, Typical
• RF Sensitivity: -105 dBm, For 12dB SINAD, Typical
• Weight: 241 g
• Dimensions (H x W x D): 40 x 188 x 103 mm
