Shure BLX24R/B58-T11 Rack Mount Wireless Microphone System

Full Description

BLX24/B58 Analogue Handheld Transmitter

The transmitter included within this Shure wireless system is designed to provide professional sound reinforcement. The dynamic microphone offers precise engineering with a contemporary design that is both durable and lightweight. The B58 transmitter works with an operating range up to 100 metres and can be used continuously for up to 14 hours of use thanks to the included AA batteries.

Rack Mount Analogue Receiver

The BLX4R offers users up to 12 compatible systems per frequency band with an easy-to-use QuickScan frequency selection. The receiver features both XLR and 1/4" jack output connectors, with removable antennas for quick antenna distribution. A two-colour audio status indicator provides users with the ability to identify when audio levels are too high as the light will show red. Included with the system is a rack-mount kit so you can setup and install the BLX4R for performance purposes.

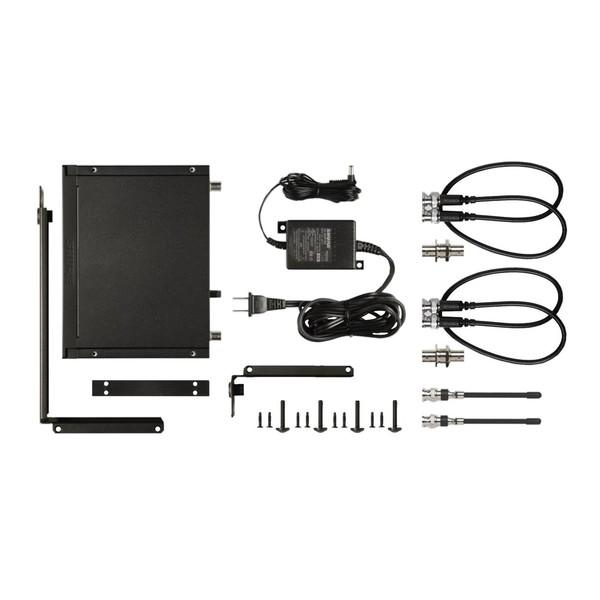

Included In The System

• 1 x Beta 58A Handheld Wireless Microphone Transmitter
• 1 x BLX4R Wireless Receiver
• 1 x Carrying Case
• 1 x Swivel Adapter
• 1 x Power Supply
• 1 x Thread Adapter

Features

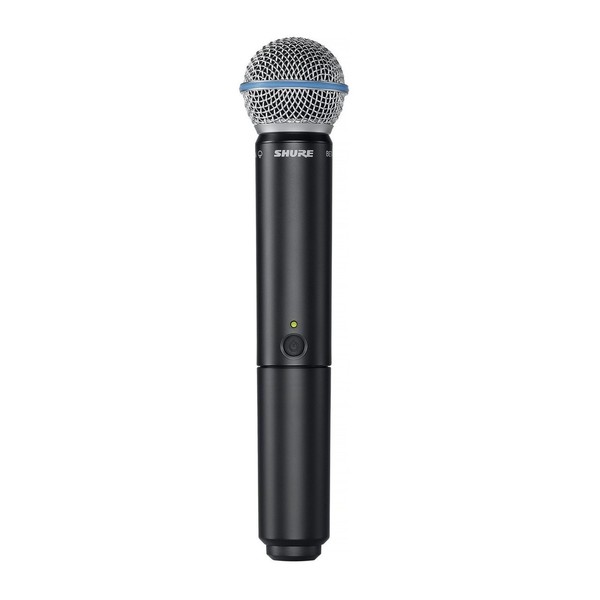

BLX24/B58 Analogue Handheld Transmitter

• Power & battery status LED
• Adjustable gain control
• Quick & easy frequency matching
• AA batteries (included) provide up to 14 hours of continuous use
• 100 metre operating range within line of sight
• Integrated microphone capsule design
• -10dB gain attenuation
• Lightweight, rugged construction

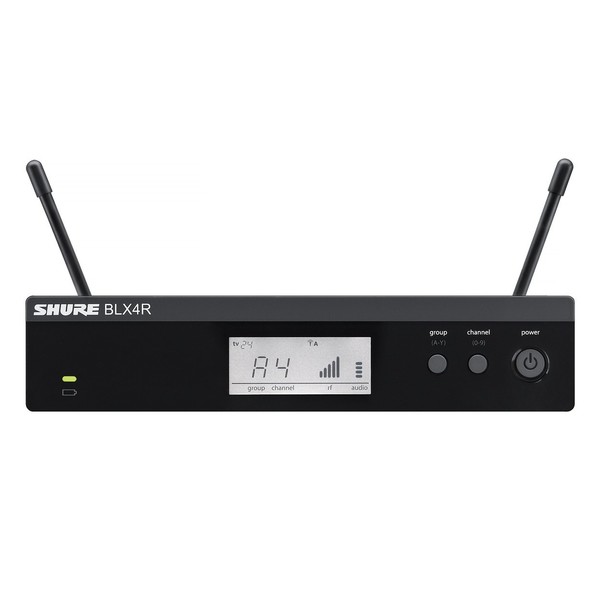

BLX4R Rack Mount Receiver

• One-touch QuickScan frequency selection
• Up to 12 compatible systems per frequency band

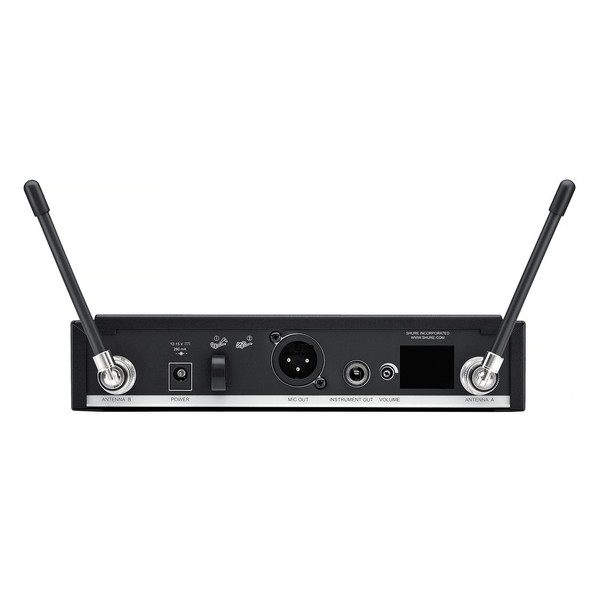

• XLR & 1/4" output connectors
• Two-colour audio status indicator LED
• Adjustable output level
• Removable antennas
• LC display with detailed RF & audio metering

Specifications

Beta 58A Analogue Transmitter

• Form Factor: Handheld
• Operating Range: 100m
• Battery Life Alkaline: 14 h
• Transmitter Housings: Molded ABS
• Audio Mute: No
• Detachable Antennas: No
• Switchable RF Power: No
• Batteries: AA
• Battery Status: Multi-Colour LED
• Frequency Diversity: No
• Functionality: Transmitter
• High Density Mode: No

BLX4R Wireless Receiver

• Transmission: Analog
• Type Of Power Supply: External
• Receiver Housings: Molded ABS, Metal
• Active Antenna Possible: Optional with UABiasT
• Bias via BNC: No
• High Density Mode: No
• Interference Detection:
• Remote Control: No
• Number Of Compatible Systems Per Frequency Band: 12
• DANTE Audio Network Interface: No
• Scan Features: Quick Scan
• Detachable Antennas: Yes
• Logic: No
• Cascade: No

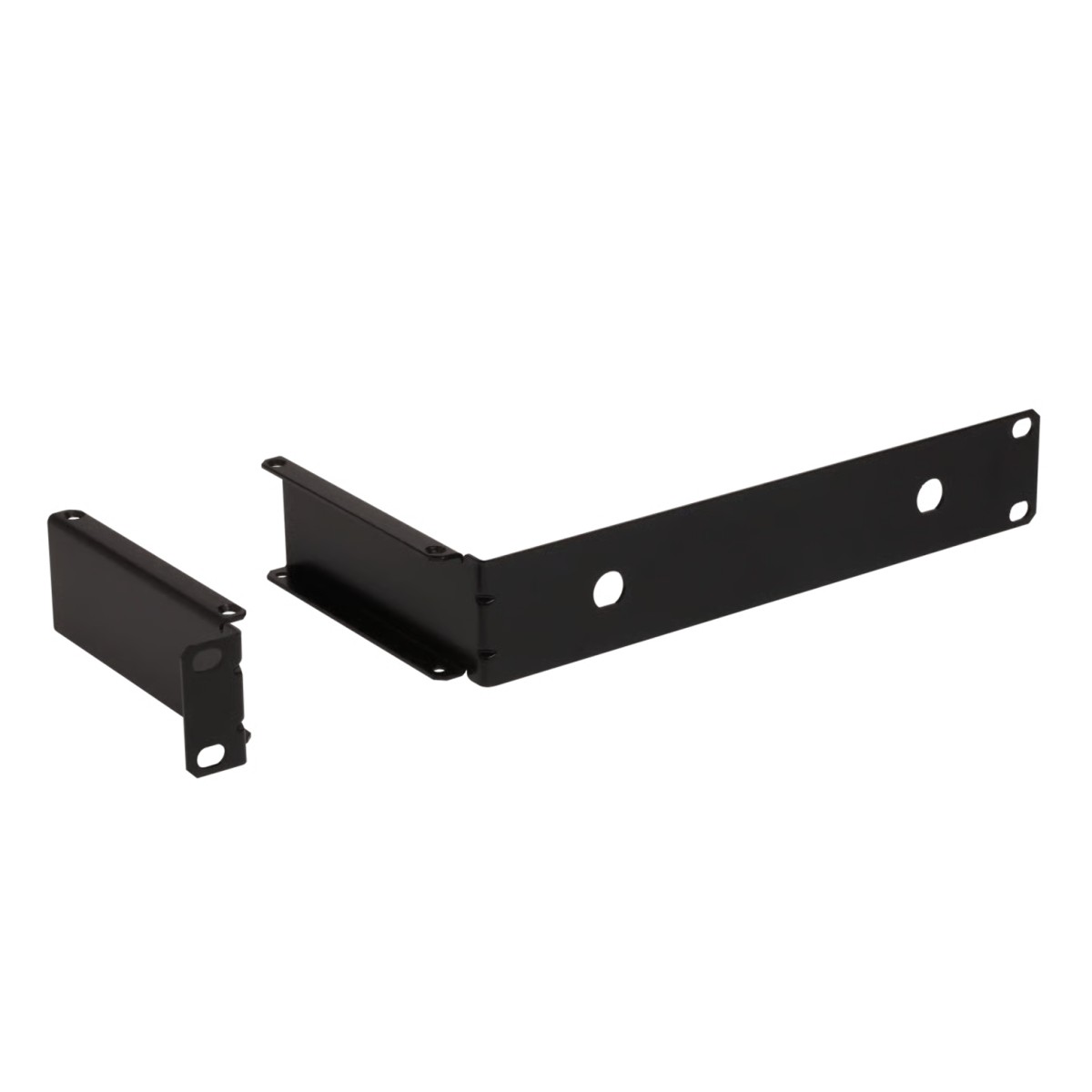

• Rack Hardware: Included Rack Mounts Brackets
• Receiver Displays: Multi-Function LCD
• Receiver Type: Single
• Included Antenna: External 1/4-Wave
• Battery Status: Multi-Colour LED
• Line Mic Switch: No
• Image Rejection: 50 dB, Typical
• RF Sensitivity: -105 dBm, For 12dB SINAD, Typical
• Phantom Power Protection: No
• Antenna Input Impedance: 50Ω
• Weight: 998 g
• Dimensions
  • Height: 45 mm
  • Width: 198 mm
  • Depth: 163 mm
