Wharfedale Pro Typhon AX12-BT Active Speaker with Bluetooth

This product is currently not available for purchase

Key Features

  • Bluetooth module allows easy music streaming and connection to another speaker
  • All the power you'd expect from a speaker named after an ancient mythical giant
  • Wedge included to give you a great monitor angle without altering the cabinet
  • Four preset DSP options give you ideal sound in seconds

Wharfedale Pro Typhon AX12-BT Active Speaker with Bluetooth Overview

Live sound on a mythic scale. Delivering all the power you'd expect from a speaker named after an ancient mythical giant, the Wharfedale Typhon-AX12-BT packs a punch and then some. A state-of-the-art aptX Bluetooth module is included for simple music streaming and connection to another speaker.



It might be named for an ancient myth, but the Typhon speaker lives on the cutting edge of modern live sound technology. Four powerful DSP presets - flat, monitor, bass, and punch - mean you can perfect your sound to a variety of rooms and applications with the press of a button.



Only the highest quality components are used in the Typhon. The super-efficient class-D amplifier and transducers are designed and engineered specifically for these speakers. There's no compromises here. Only components tailored for the Typhon.

Product Ref: 138366

Full Description

View Full Description

Versatile live performance

Every aspect of the Typhon is designed to make it useful in a variety of applications. The integrated mixer caters to a wide range of sound sources, with XLR and jack connectors at both line and mic level. A link output also makes it easy to create stereo pairs with another speaker.

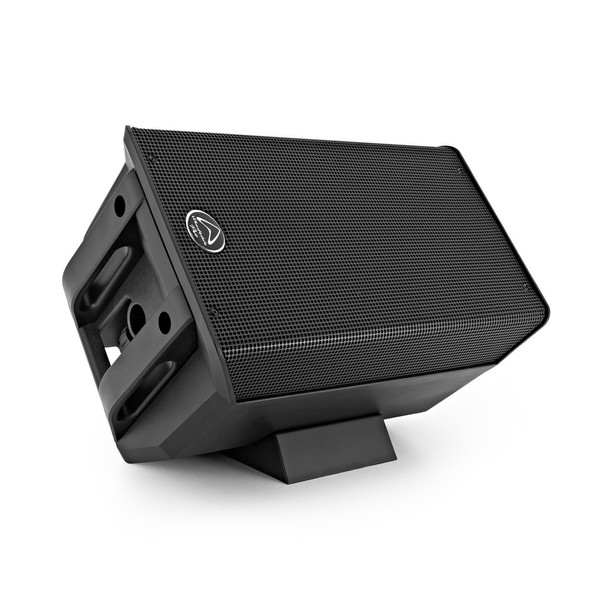

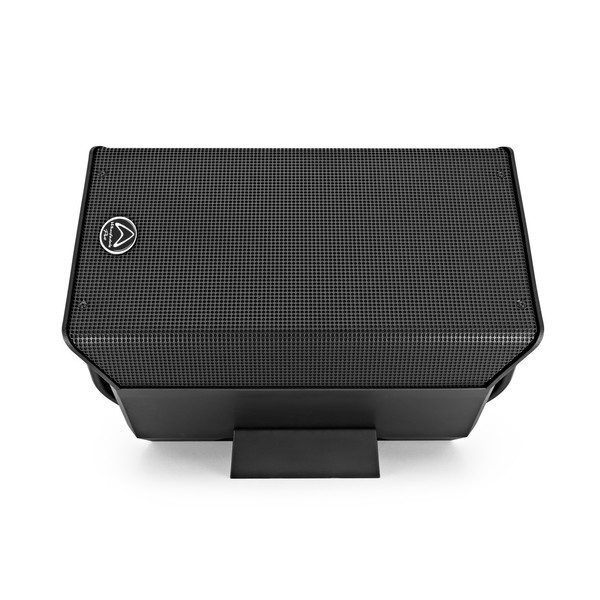

For floor monitor use a wedge adapter is included. Most active speakers include a monitor angle in the cabinet, which can negatively affect its resonance. Why compromise? The included wedge means you can get the perfect monitor angle without losing out on perfect cabinet resonances.

Features

  • Bluetooth streaming for music or stereo linking to another speaker
  • Four DSP presets let you adapt to a variety of rooms and situations in seconds
  • XLR and jack inputs at line or mic level, along with a link output for easy pairs
  • Wedge included to get a great monitor angle without compromising cabinet construction
  • 720 watts continuous power output from the efficient class-D amplifier
  • A huge variety of rigging points integrated for install or flown applications
  • Specially designed drivers give the best possible pairing with the amplifiers

Specifications

  • System type: Active 12'' 2-way with Bluetooth
  • Frequency Response (+/-3dB): 55Hz-20kHz
  • Frequency Range (-10 dB): 50Hz-20kHz
  • Maximum SPL at 1m: 129dB
  • Sensitivity at 1W / 1m: 98dB
  • Low Frequency Transducer:
    • Size (mm / inches): 305mm / 12''
    • Voice Coil Size (mm / inches): 65mm / 2.5”
    • Rated Impedance: 4Ω
  • High Frequency Transducer:
    • HF Driver Type: Compression Driver
    • Coil Size (mm / inches): 44mm/1.75''
    • Exit Size (mm / inches): 25mm/1''
    • Diaphragm Material: Titanium
    • Rated Impedance: 8Ω
    • Nominal Coverage (H x V): Hybrid Symmetry Horn 100° x 80°
  • Amplifiers:
    • Amplifier design: 2 x Class D
    • Power rating: 1440W Peak (1200W LF + 240W HF), 720W Continuous (600W LF + 120W HF)
    • DSP Controls: FLAT/MONITOR/BASS/PUNCH
  • Inputs:
    • Input - A: balanced
    • Input sensitivity: 775mV (0dBu)
    • Input connectors A/B: 2*XLR, 2*6.3mm jack
    • Input impedance: 20KΩ
    • Line output: Balanced XLR
    • Loop gain: 0dB
  • AC Power: 220 240VAC/100 120VAC 50/60Hz

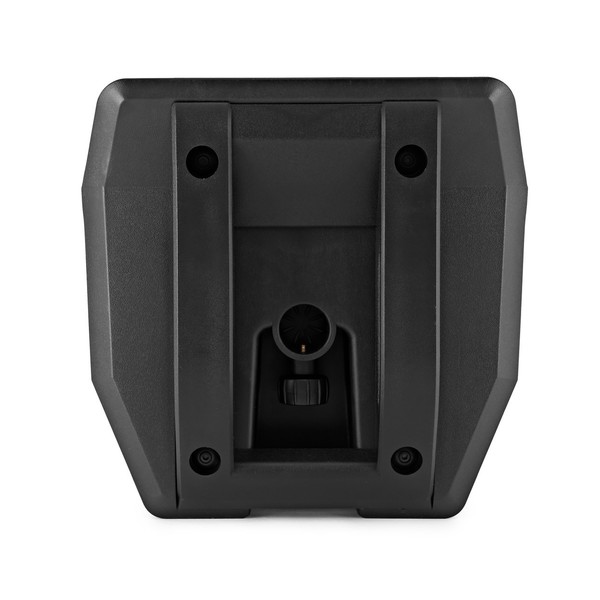

  • Rigging:
    • 9 x M8 threaded inserts
    • 35mm pole socket with lock screw
    • 5 x carry handles
    • Optional WPB-2 wall-mount bracket
  • Enclosure: Injection moulded polypropylene
  • Grille material & finish: Full front - steel
  • Dimensions:
    • Height: 558 mm
    • Width front: 344 mm
    • Width rear: 245 mm
    • Depth: 340 mm
    • Net Weight: 16.2 kg
    • Gross Weight: 19.2 kg
