Instant studio monitor upgrade
The ARC Studio Room Correction System brings top-tier room correction technology to any studio setup. By analysing and correcting room acoustics, it ensures your monitors deliver precise, balanced audio. Experience tighter low-end, clearer transients, and pinpoint stereo imaging, significantly enhancing your mixing accuracy and confidence. Your room’s size, shape, materials, and furniture all impact your sound. The ARC 4 software uses an advanced algorithm to address these issues, transforming your listening environment in minutes.
Easy setup in minutes

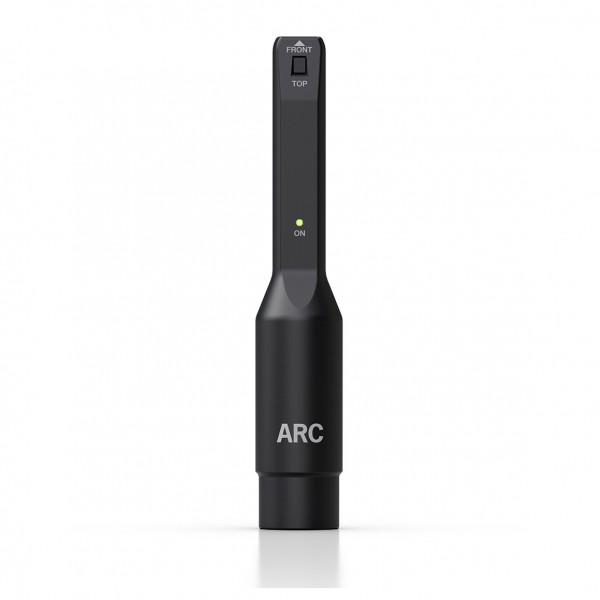

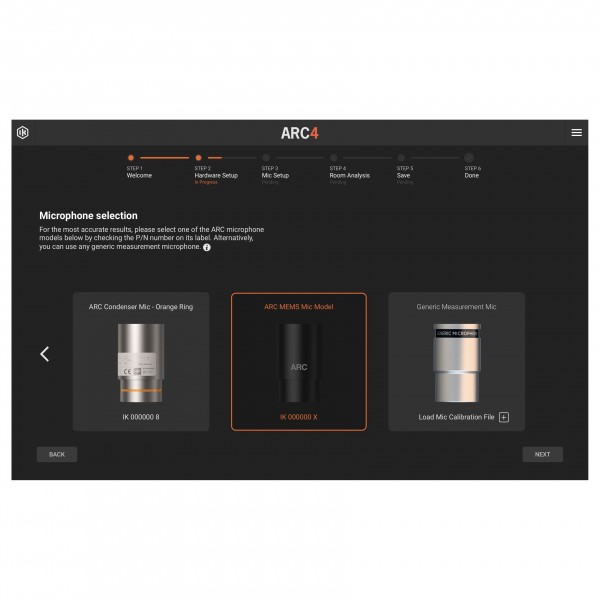

Setting up the ARC Studio is a breeze. Simply plug the included microphone into your interface, follow the guided measurement process, and let the ARC 4 software do the rest. It creates a 3D snapshot of your room and corrects problematic acoustics, improving your monitoring environment without any hassle. This quick and straightforward installation means you spend less time on technical adjustments and more time on creating music. The intuitive process ensures anyone, regardless of technical expertise, can benefit from professional-grade room correction.
High-end audio quality
The ARC Studio features premium AD and DA conversion using AKM Velvet Sound converters, providing a dynamic range of 120 dB(A) and a frequency response from 0.5 Hz to 40 kHz. This ensures sonic transparency and accuracy, making it suitable for mastering-grade audio conversion and offering an audiophile listening experience. The standalone processor corrects studio monitors in any setup, including hardware- and console-based studios, maintaining the integrity of your original sound while eliminating room-induced distortions.
Customisable monitoring profiles
Tailor your monitoring setup to your preferences with ARC 4’s flexible controls. Use pre-set target curves or create custom ones, adjust correction ranges, and choose between natural and linear phase modes. The monitor emulation feature lets you simulate different reference systems, allowing you to perfect your mix without additional equipment. With over 20 profiles included, you can transform your monitoring system to emulate iconic studio monitors, popular hi-fi speakers, and even mobile devices, ensuring your mix sounds great on any platform.
Advanced room correction
ARC 4’s algorithm provides deep control over each profile, ensuring optimal performance. The adjustable correction range allows you to define limits to both upper and lower frequency ranges, preserving the unique voicing of your monitors or focusing on specific frequency corrections. Variable resolution and smoothing enable you to achieve either surgical precision or a broader, smoother balance, depending on your room’s characteristics.
Features
- Significantly enhances mixing precision via advanced analysis microphone and software
- Compatible with any monitor system in any environment
- Quick installation in any studio or space
- Provides audiophile-quality, transparent sound
- Simulates high-end monitors and playback systems
- Adjust monitor performance to your preference
- Compact digital room correction unit
- Superior audio conversion
- Complete range correction for all audio production types
- Zero latency for immediate monitoring in any configuration
- Improves even non-optimized or temporary setups
- Suitable for all studio types, from digital to analog setups
- Comes with ARC measurement microphone and software
- Create correction profiles in a few minutes
- Adjust sweet spots for clients and team members
- Evaluate mixes with virtual monitor profiles
- Simulate common playback systems found in real-world settings
- High-quality AD and DA conversion for crystal-clear sound
- 120 dB dynamic range with minimal THD and jitter
- Choose between natural or linear phase correction
- Set upper and lower frequency correction boundaries
- Includes up to 9 target curves for precise in-room adjustment
Specifications
- Audio
- AD And DA Converters: AKM Velvet Sound™
- Audio Conversion And Internal Processing Sampling Rate: 96 kHz
- Audio Conversion Resolution: 24-bit
- Internal Processing Resolution: 32-bit Float
- Frequency Response: 2 Hz - 45.0 kHz (- 2.0 dB)
- Dynamic Range: 120 dB (A-weighted)
- THD (20-20 kHz): 0.00035%
- THD+N (1 kHz@-1dBFS): -107 dB
- Channel Crosstalk (1 kHz): -122.5 dB
- Max Phase Deviation: +7° 20Hz, +16° 22kHz
- Input Impedance (Balanced): 20 kOhm
- Output Impedance (Balanced): 50 Ohm
- Maximum Output Level: +17 dBu
- Latency
- Natural Phase Mode: 1.4 ms
- Linear Phase Mode: 42 ms
- Power
- Powered By Included Power Supply Unit
- Dimensions
- Size: 14.4cm / 5.6" x 12cm / 4.72" x 4.5cm / 1.77"
- Weight: 465g / 1,03lb
- System Requirements
- Mac® (64-bits)
- Minimal: Apple M1 Or Intel® Core I5 Processor, 4 GB Of RAM, macOS® 10.15 Or Newer (macOS 11 Or Newer Required For Apple Silicon Processors).
- Supported Plug-In Formats: Audio Units, VST 2, VST 3, AAX.
- Works With Any Audio Interface With A Phantom Powered XLR Microphone Input And A Pair Of Outputs For Monitoring.
- 44.1 kHz Or 48 kHz Sampling Rate Is Required For The Measurement Process.
- One Free USB Port Required.
- Windows® (64-bits)
- Minimal: Intel® Core I5 Processor Or Equivalent, 4 GB Of RAM, Windows 10 (64 Bit) Or Newer.
- Supported Plug-In Formats: VST 2, VST 3, AAX.
- Works With Any Audio Interface With ASIO Drivers, A Phantom Powered XLR Microphone Input And A Pair Of Outputs For Monitoring.
- 44.1kHz Or 48kHz Sampling Rate Is Required For The Measurement Process
- One Free USB Port Required.
- Product Code: IP-ARC-STUDIO-IN
