iConnectivity PlayAUDIO12 Audio Interface

Full Description

Ideal For Live Performances

The PlayAUDIO 12 Audio and MIDI Interface is the ultimate playback solution for live performances. The PlayAUDIO12 provides fail-proof functionality for the playback of backing tracks, virtual instruments and any other digital audio. The interface itself was designed by touring musicians and live performers, ensuring every detail is tailored to live musicians. The interface features 12 ultra-low noise outputs for optimal audio fidelity, bringing studio-quality interfacing to the stage. You can even link an additional PlayAUDIO12 interface for expansive connectivity. The compact and highly portable design features capacitive touch control with bright LED metering for dark stages. You can also access the key features of the interface from the front-panel.

Fail-Proof Protection

One of the most sought-after features of any live interface is fail-proof protection. This ensures if one computer fails it can depend on another computer to run the same backing track/virtual instruments without messing up the performance. PlayAUDIO12 instantly detects if a computer has failed, and automatically switches to another synchronised computer. This ensures your audio files will remain playing in the same position if one fails, ensuring a perfect performance every time.

Studio-Grade Audio Fidelity

Designed for the stage, the interface boasts pristine AD/DA converters delivering studio-grade audio fidelity. The converters deliver 24-bit/96kHz sample rates, capturing every nuance from your backing tracks in immense detail for optimal audio performance. The interface also includes a ¼-inch TRS stereo headphone output for convenient headphone monitoring.

Versatile Connectivity

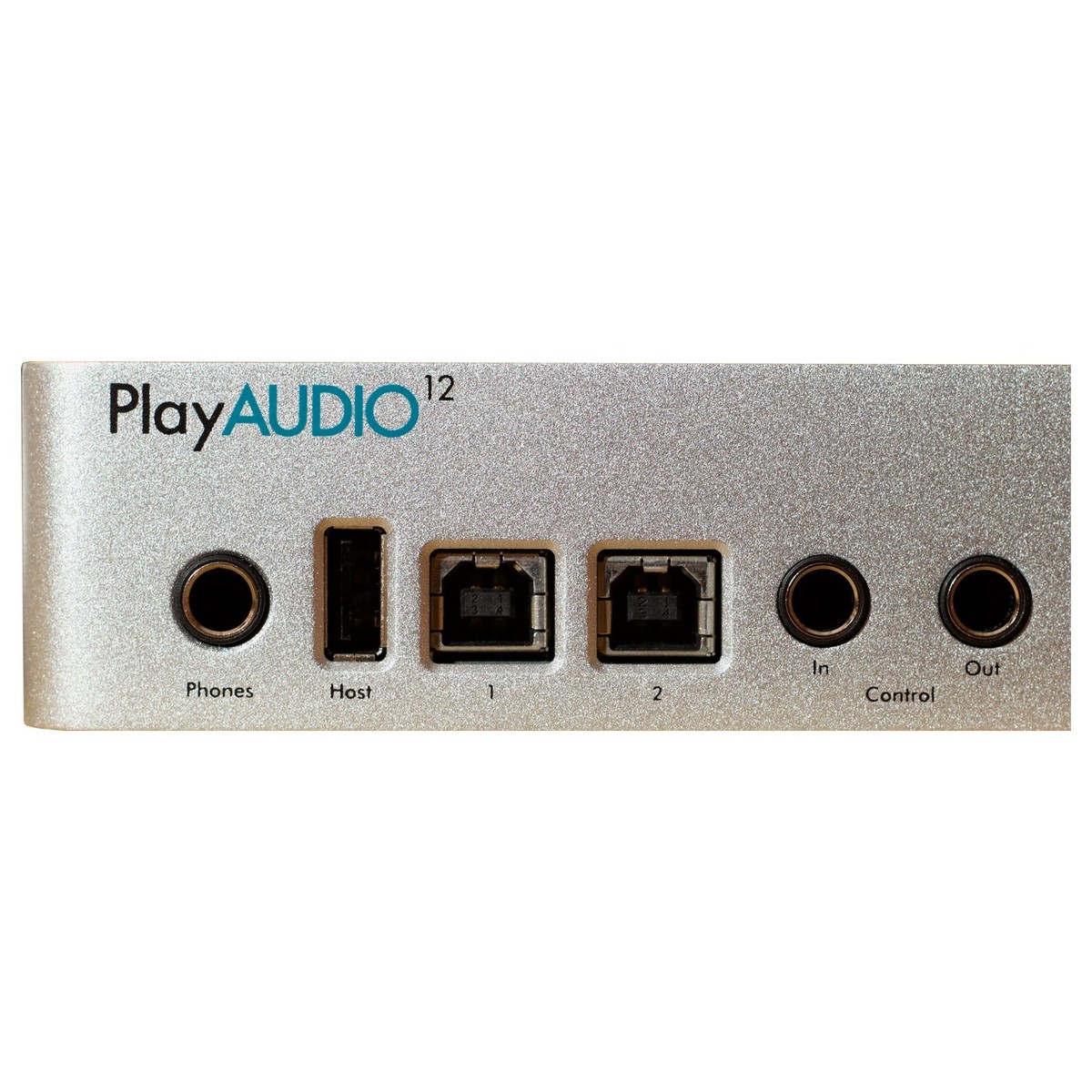

The interface also boasts a versatile range of connections for communicating with other musical equipment and computers. In addition to the 10 TRS balanced audio outputs, there are also 2 USB 'b' ports for connecting up to 2 computers at the same time. The USB MIDI Host port provides up to 8 connections of USB MIDI for Class Compliant controllers/modules. The 'Control In' acts as a footswitch input with 2 buttons, allowing you to manually switch computer an/or user-assignable controls. The Control Out connection allows you to connect additional PlayAUDIO12 units for expanded connectivity. An Ethernet MIDI connection is ideal for rugged long-distance MIDI connections.

Features

• 10x ¼-inch TRS balanced audio outputs for low noise connections on any stage. (Outputs are +48v Phantom Power resistant)
• 1x 1/4” TRS stereo headphone output for convenient headphone monitoring
• 2x USB ‘B' ports for connection of up to 2 computers simultaneously
• Automatic and manual computer switching modes, for lightning fast switching between connected computers
• USB MIDI host port, offering up to 8 ports worth of USB MIDI for Class Compliant controllers and/or modules
• Ethernet MIDI for rugged long-distance MIDI connections
• Capacitive touch control with clear metering for dark stages
• Easy, software-less control over PlayAUDIO12’s key features from the front panel
• 2-button ‘Control In’ footswitch input allows manual computer switching and/or user-assignable controls
• Control Out connection for slaving additional PlayAUDIO12 units
• Studio-grade audio fidelity – 24-bit/96kHz AD/DA conversion

Specifications

• Maximum Output Level: 13 dBu, 11 dBV, 3.6 Vrms
• SNR: 122 dB (1kHz, BW: 22Hz-22kHz, A-weighting)
• THD+N: -116 dB (1kHz, BW: 22Hz-22kHz, A-weighting)

• SNR: 100 dB (1kHz, BW: 22Hz-22kHz, A-weighting)
• THD+N: -100 dB (1kHz, BW: 22Hz-22kHz, A-weighting)
• Power Output into 30 Ohms Per Channel: 73 mW per channel

• Resolution: 24-bit
• D-A Dynamic Range: 115dB
• THD+N: -107 dB (1kHz, BW: 22Hz-22kHz, A-weighting)
• Supported Sample Rates: 44.1 kHz, 48 kHz, and 96 kHz

• Dimensions (WxHxD): 214mm x 27mm x 140mm
• Weight: 965 grams (2.13 lbs)
