Switchable gain stages
Delivering a consistent, clean and stable amount of gain, the DM2 features two gain stage levels for flexible performance on a range of sources. Offering a neutral and balanced sound with extremely low noise, the DM2 Active Inline Preamp boasts uncompromising sound quality with extremely high audio fidelity to maintain every detail of your signal. The uncompromising design boosts the signal independent from the load impedance or cable length, meaning that no matter how long your cable length is, you can enjoy optimum audio and gain performances with zero noise in your signal. Matched perfectly for passive microphones such as dynamic or passive ribbon microphones, the DM2 effectively eliminates any RF interference, letting you enjoy an extremely clean signal transfer between your source and your mixing desk or audio interface.
Get the best sound from your microphone collection with variable input load

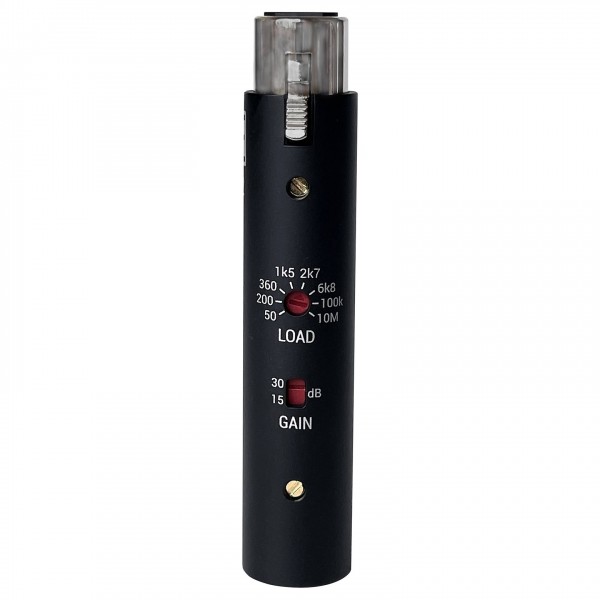

Typically, inline preamps will use a series of internal electronics that will result in the signal clarity being reduced and therefore experiencing a lower output level. Ensuring you can achieve the best signal transfer between your passive microphones and your source, the DM2 uses an ultra-high impedance input to effectively take the load of any passive microphone. At the twist of a dial, you can explore eight impedance settings from a low 50 ohms to an extremely high 10 Mohms, allowing you to match your DM2 Active Inline Preamp to your microphone to get the most accurate and detailed sound from your collection. Of course with these options, you are encouraged to experiment with your microphone collection to find a tone and character that helps you achieve your desired outcome.
Sophisticated Class-A electronics and dedicated output buffer
Using hand-selected, premium-grade FETs in conjunction with an elaborate and sophisticated electronic design, the DM2 Active Inline Preamp performs better than any other product available in its class. Plugging in your passive microphone has never sounded this good, allowing you to create studio-quality recordings effortlessly. The transformerless design ensures that your microphone signal will retain all of the detail while reducing any RF interference, buzz and hum that might occur.
Slim, rugged all-metal housing with premium finish
Whether you're a studio engineer, live sound engineer or musician, the DM2 is built to withstand the most challenging environments. Constructed from high-quality materials and attention to detail, the DM2 Active Inline Preamp boasts a rugged and road-ready all-metal design that is ready for both on the stage or in the studio. A gold-plated XLR connector rounds out the design to deliver reliable, lossless signal transfer.
Features
- Continuation of the hugely popular DM1 Dynamite
- Compact and portable, perfect for live or in the studio
- Attach directly to your microphone or your input source and connect via XLR cable
- Immaculate audio performance with stunning detail and clarity
- Ideal for portable recorders for extra gain boost
- Incresed maximum gain level to 30dB
- Reduced noise floor for maximum signal clarity
- Increase input impedance for astonishing fidelity
- Switchable gain level from 15dB to 30dB
- Designed for an authentic, balanced and neutral sound
- Get the best sound of your microphone by using the variable input load
- Use the onboard load settings to alter the tone of your microphone
- State-of-the-art electronics and high-grade FETs provide supremely low noise
- Class-A design uses transformerless amplification for pristine sound quality
- Dedicated output buffer delivers low output impedance to power through very long cables
- Eliminates RF interference, buzz and hum
- Gold-plated XLR connector for lossless transmission of audio
Specifications
- Frequency response: 10hz - 120,000 Hz (-0.3 dB)
- Gain: 15/30dB
- Max output level (0.5 THD): 9.5 dBV (3.0 V)
- Output noise level: 1 microV @ 15 dB / 6.6 microV @ 30 dB
- Electrical impedance: 135 Ohms
- Recommended load impedance: >1k Ohms
- Current consumption: 3.1 mA
- Connectivity: 3-pin male/female XLR connector
- Phantom power: Requires phantom power
- Compatible with: Passive microphones that do not require phantom power including dynamic microphones, passive ribbon microphones and ceramic/piezo transducers
- Weight: 84g
- Dimensions (Circumference x Height): 19mm x 95.5mm
- Product code: DM2 Black
