Key Features

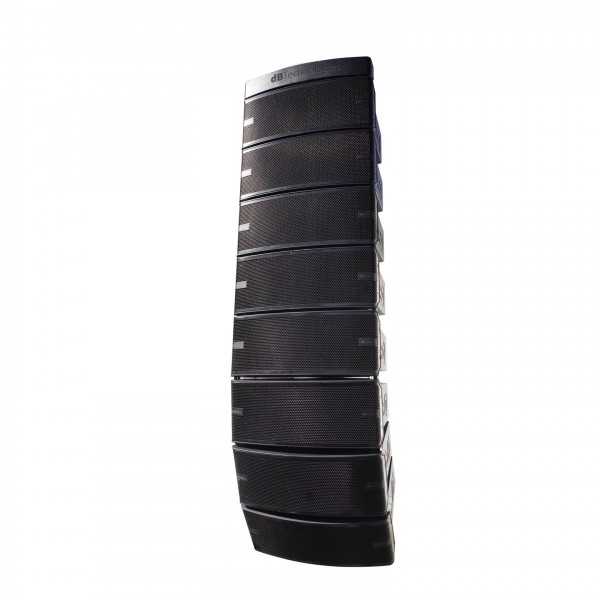

- Compact and versatile two-way line array system ideal for stacking to fill large venues
- Neodymium compression drivers provide punchy, present high-end
- Linear-phase FIR crossovers for smooth transitions between drivers during playback
- Maximum output of 131 dB SPL per module provides powerful sound
dB Technologies DVA Mini G2 Active Line Array Module, Black Overview
The dB Technologies DVA Mini G2 Active Line Array Module is a compact line array component that provides huge sound for large or open-air venues. With two 6.5" low-frequency woofers, as well as a pair of 1" neodymium compression drivers, the DVA Mini G2 consists of high-grade drivers for unparalleled clarity and punch for any show. Featuring high-efficiency Class D amplification, this line array module is lightweight and portable despite its heavy-duty construction, making it easier to stack and rig as many units as you need without risking damage to your stage or venue's structure. Start your line array on the right foot with this compact speaker.
The DVA Mini G2 provides broad connectivity via dB Technologies' own Aurora Net control software. This network connectivity adds a range of important functionality, including EQ, speaker delay, processing customisation, and real-time monitoring. The innovation doesn't stop there, though! With linear-phase FIR crossover filters, each slope between drivers is smooth and less noticeable, creating a more cohesive sound for your array. Build the system your venue needs with the DVA Mini G2 Module.
Product Ref: 213208
Full Description
View Full DescriptionLine array starting point
Line arrays are commonly seen in live music venues, particularly larger ones, thanks to their consistent sound firing, improved vertical dispersion control, and higher maximum output, making them extremely well-suited to large venues, houses of worship, and open-air events. See why line arrays are so common in live sound with the DVA Mini G2, the perfect way to start your array.
Advanced processing
Included network connectivity and software control on this line array speaker module provide huge amounts of control over the sound and behaviour of your system. Featuring EQ for tonal balance, speaker delay for timing control, processing customisation, and real-time monitoring, dB Technologies' Aurora Net opens up the capabilities of your array to new, competitive heights. The inclusion of linear-phase FIR filters for speaker crossover is yet another innovation, providing smooth, unnoticeable crossovers for a consistent listening experience.
Features
- Compact line array system module featuring four high-grade speakers for powerful sound individually, and extreme fidelity when stacked in an array
- Advanced network connectivity via Aurora Net provides EQ, delay, and real-time monitoring
- Maximum output of 131 dB per module ensures full, present sound for your array
- Neodymium driver design provides lightweight design with full sound
- Linear-phase FIR crossovers for smooth, unnoticeable speaker crossovers while listening
- Fast and easy setup with quick locking mechanism for secure and easy stacking into an array that suits your space
- Efficient, lightweight design provides a safer array for rigging in your venue without causing damage
Specifications
- Speaker Type: Two-way active line array module
- Usable Bandwidth (-10 dB): 75 Hz - 20,000 Hz
- Frequency Response (-6 dB): 80 Hz - 19,000 Hz
- Maximum Output: 131 dB SPL
- HF Driver: 2 x 0.75" neodymium compression drivers
- HF Voice Coil: 1"
- LF Driver: 2 x 6.5" neodymium
- LF Voice Coil: 1.75"
- Directivity (H x V): 15° x 100°
- Amp Technology: Digipro® G3
- Amp Class: Class D
- RMS Power Amp: 400 W
- Cooling: Convection
- DSP Controller: DSP 56-bit
- AD/DA Converter: 24-bit/48 kHz
- Controls: 1 x rotary encoder (8 presets)
- Limiter: Multiband, RMS/Peak, Thermal
- Crossover Frequency: 1900 Hz
- Crossover Slope: 24 dB/octave
- Advanced DSP Functions: Linear-phase FIR filters
- Signal Input: 1 x XLR (F), balanced
- Signal Output: 1 x XLR (M), balanced
- Power Supply: 400W SMPS with PSU Auto-range (110V~ and 220V~)
- Power Socket: 1x PowerConTRUE1 In, 1x PowerConTRUE1 Out
- Housing: Polypropylene
- Handles: 2 x back side
- Fittings: Integrated hardware with fast lock mechanics
- Width: 460 mm (18.1")
- Height: 190 mm (7.5")
- Depth: 345 mm (13.6")
- Weight: 8.4 kg (18.5 lbs.)
