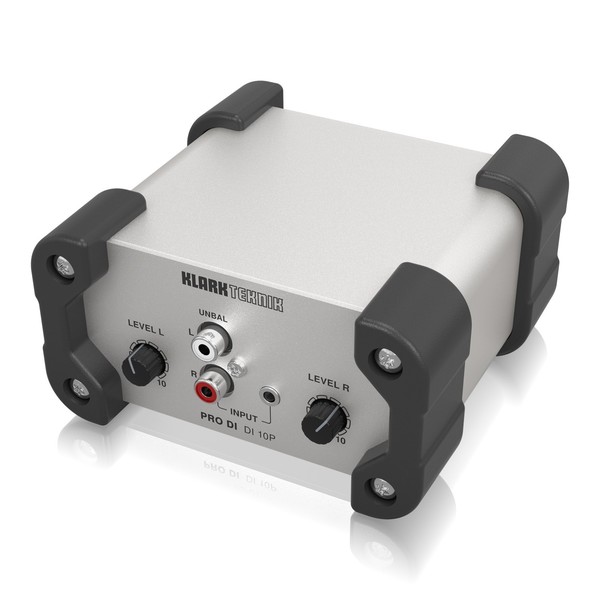

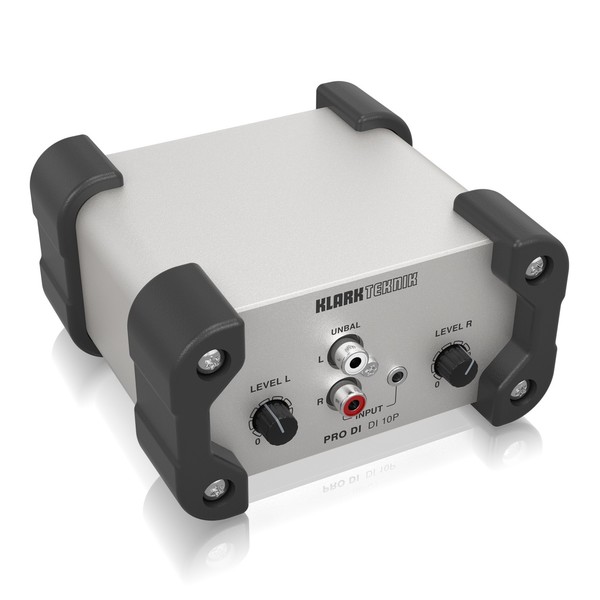

Klark Teknik DI 10P Passive DI Box

Full Description

High Headroom Design

The Klark Teknik DI 10P is equipped with a custom instrumentation-grade input circuit which utilises advanced analog design techniques. This innovative design guarantees an incredibly low noise, low harmonic and phase distortion input stage with a flat frequency response that ranges from 10Hz to 91kHz (±1dB).

Features

• Passive DI Box with stereo input and summed mono output
• Custom-built MIDAS transformer for highest signal integrity
• High headroom design offers superior sound quality
• Passive design does not require any power supply
• Stereo input on 1/8” TRS and RCA connectors
• Fully adjustable level control for both channels

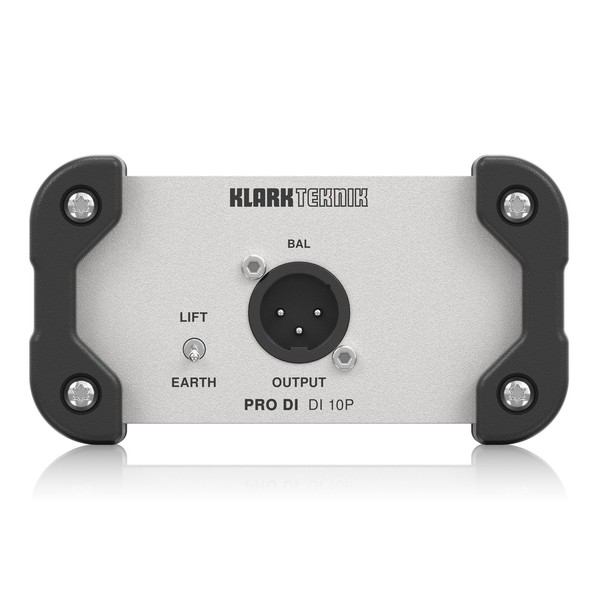

• High quality Neutrik XLR connector
• Earth Lift switch eliminates ground loop problems
• Fully transformer-isolated design ensures electrical separation
• Ultra-low noise and ultra-linear system for highest signal integrity
• Aluminium extrusion casing with protective rubber corners
• Compact and rugged design
• Designed and engineered in the UK

Specifications

Inputs

• Connectors: RCA unbalanced, 1/8&rdquote; TRS
• Impedance: 7kΩ

Outputs

• Connector: XLR, balanced
• Impedance: 170Ω

System

• Frequency response: 10 Hz to 91 kHz(±1dB)
• THD + N (Distortion): <0.03 % 1kHz, +4 dBu
• Signal-to-noise ratio >120 % 1kHz, +4 dBu
• Power requirement: Passive

Physical

• Dimensions: 64 x 118 x 112 mm
• Weight: 0.47kg

General

• Product Code: DI 10P
