Key Features
- 1 Balanced Input and 5 Balanced Outputs
- High-Quality Neutrik XLR Connectors
- Ultra-Low Noise and High Headroom Design
- Perfect for Professional Audio and Broadcast Applications
- Aluminium Extrusion Casing with Rubber Corners

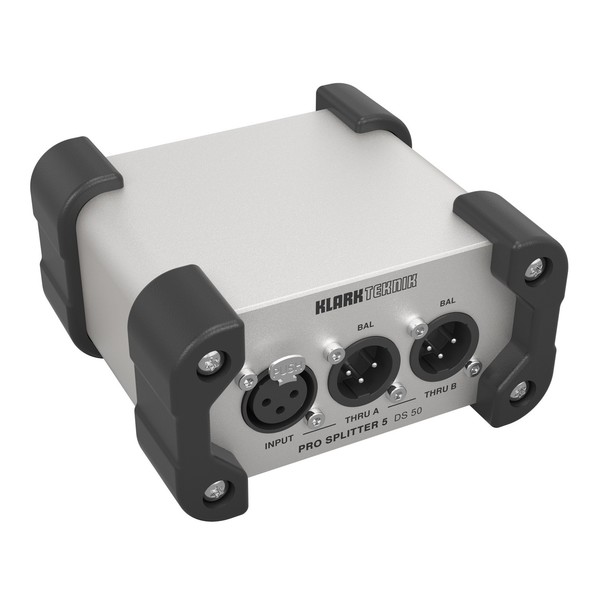

Klark Teknik DS 50 Passive Splitter Overview

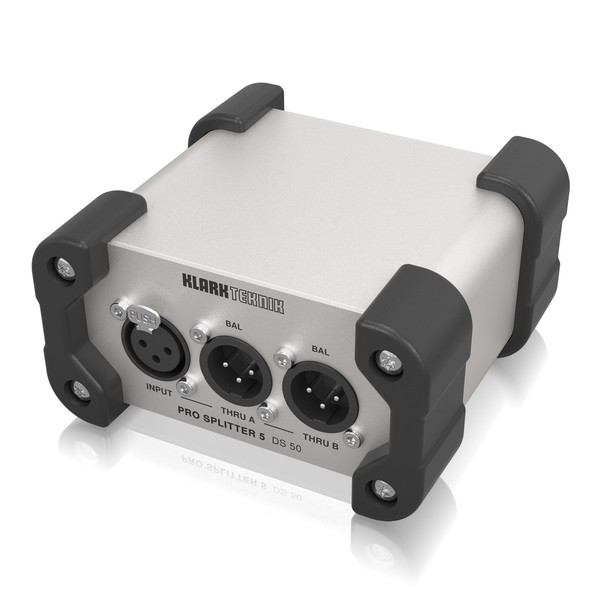

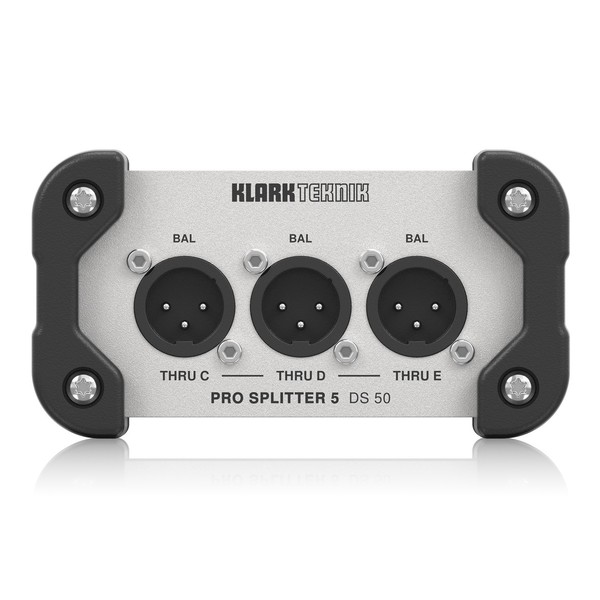

The Klark Teknik DS 50 Passive Splitter allows you to split a single balanced singal into a maximum of five outputs, perfect for a wide range of professional audio and multimedia applications. The Klark Teknik DS 50 offers a high headroom design with superior audio quality and the highest possible signal integrity. The front of the DS 50 splitter features a Neutrik XLR input connector and two balanced Neutrik XLR output connectors, while the rear of the splitter provides an additional three balanced Neutrik XLR output connectors. The compact aluminium extrusion casing is capable of withstanding demanding environments and the rubber corners offer further protection.
Product Ref: 115651
Full Description
View Full DescriptionHigh Headroom Design
The Klark Teknik DS 50 is equipped with a custom instrumentation-grade input circuit which utilises advanced analog design techniques. This innovative design guarantees an incredibly low noise, low harmonic and phase distortion input stage with a flat frequency response that ranges from 20Hz to 22kHz (±1dB).
Features
- Line level splitter sends single input signal to 5 outputs
- High headroom design offers superior sound quality
- Passive design does not require any power supply
- High quality Neutrik XLR connectors
- Route a balanced signal to FOH, monitor consoles, speakers, broadcast mixers and more
- Ultra-low noise and ultra-linear system for highest signal integrity
- Aluminium extrusion casing with protective rubber corners
- Compact and rugged design
- 10-Year Warranty Program
- Designed and engineered in the UK
Specifications
- Inputs: XLR, balanced
- Outputs: 5 x XLR, balanced
- Frequency Response: 20 Hz - 22 kHz
- THD + N (distortion): < 0.01% @ 1 kHz, +4 dBU
- Signal-to-Noise Ratio: 121 dB
- CMRR: 98 dB typical
- Insertion Loss: 0.05 dB @ 100kΩ, 0.7 dB @ 600Ω
- Power Requirement: Passive
- Dimensions (H x W x D): 118 x 112 x 64 mm (4.6 x 4.4 x 2.5")
- Weight:
