Neumann MA 1 Monitor Alignment Kit with KH 80 DSP Monitors

Full Description

Neumann MA 1 Monitor Alignment

Professional monitoring made easy

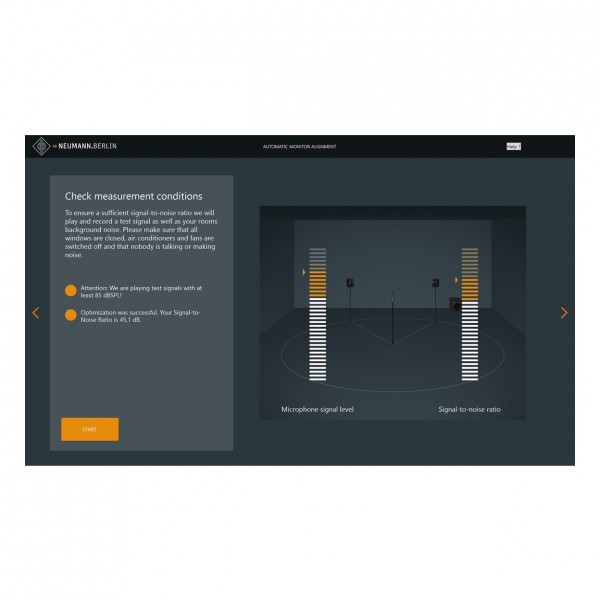

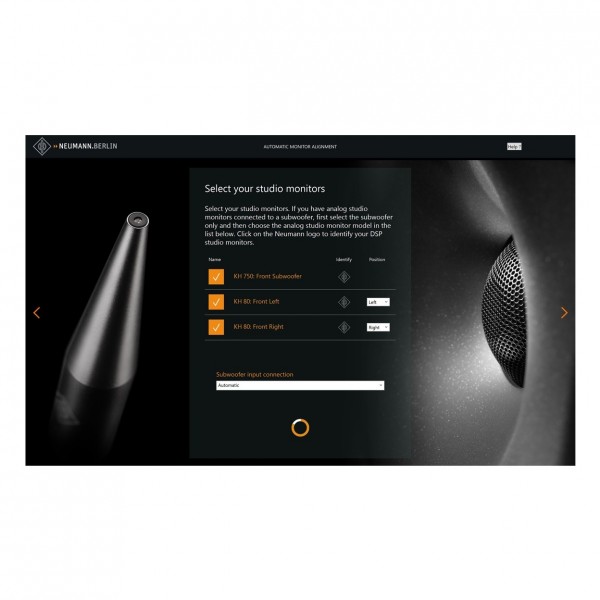

No special drivers. No additional plug-ins. All alignment data is stored directly into your DSP-powered monitors. Adjust phase and amplitude with the software. You don't need special acoustic knowledge to get great results. This kit does the hard work for you.

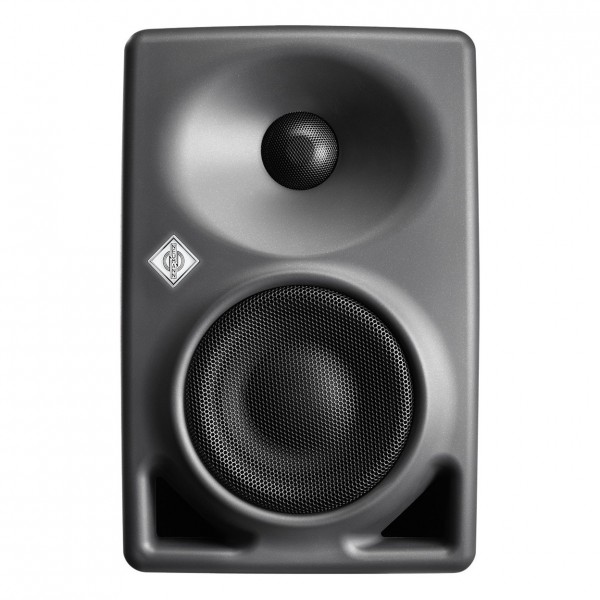

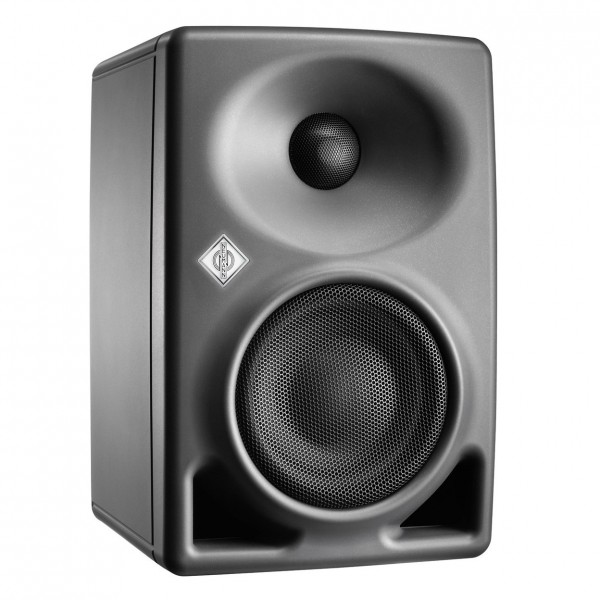

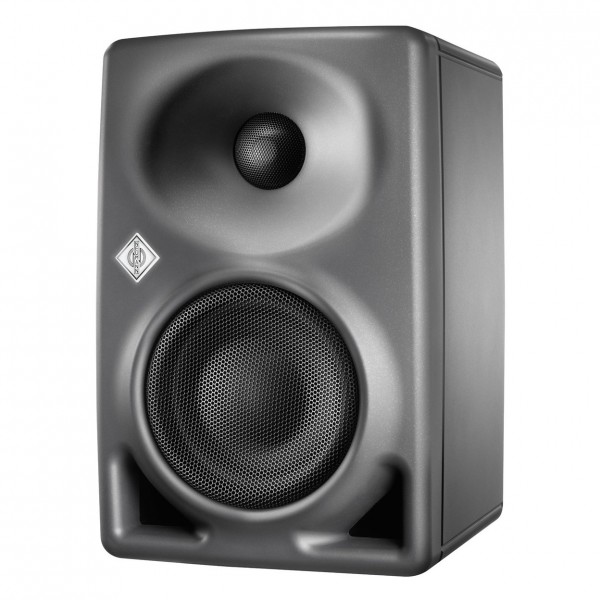

Neumann KH 80 DSP A Studio Monitor

Exceptional sonic accuracy and consistency

The KH 80 is the first Neumann DSP studio monitor and delivers the most accurate sound reproduction with added flexibility thanks to the DSP engine and efficient drivers. Combined with the Mathematically Modeled Dispersion Waveguide (MMD) and the rest of the premium-grade components, the KH 80 delivers exceptional audio fidelity. The digital signal processing engine ensures that the sound is pristine and clear whilst the drivers deliver outstanding sound reproduction with quality bass, mid-range and treble results.

Mathematically modeled dispersion (MMD) Waveguide

The MMD waveguide provides optimum control over directivity of the mid-range and treble drivers. The technology allows drivers to experience increased loading, reduced edge diffraction and an overall smoother power response and wider listening area. The result gives the KH 80 reduced audio distortion and ultimately improves the quality of sound reproduction.

Ideal for at home and in the studio

Designed for use as a near-field monitor, a front loudspeaker in small multi-channel systems or as a rear loudspeaker, the Neumann KH 80 is incredibly suited to desktop applications and domestic environments. This makes it ideal for use within broadcast centres, music, OB cans, post production studios or mixing and mastering. Representing the very latest in acoustic and electronic simulation, the most accurate sound reproduction is made possible within the Neumann studio monitor.

What’s in the box

• 1 x KH 80 DSP Active Monitor
• 1 x UK Mains Cable
• 1 x Safety Booklet
• 1 x Getting Started Quickly Guide
• 4 x Self-Adhesive Feet
• 1 x MA 1 Microphone
• 1 x Microphone clamp
• 1 x Quick guide
• 1 x Safety guide
• Software is downloadable

Reviews

"How do they sound? To sum it up in a word I’d go with impressive." Production Expert (read the full review here)

"The newest member of Neumann’s celebrated KH family of monitors might be the smallest, but it’s also the most technologically advanced." Sound on Sound (read the full review here)

Features

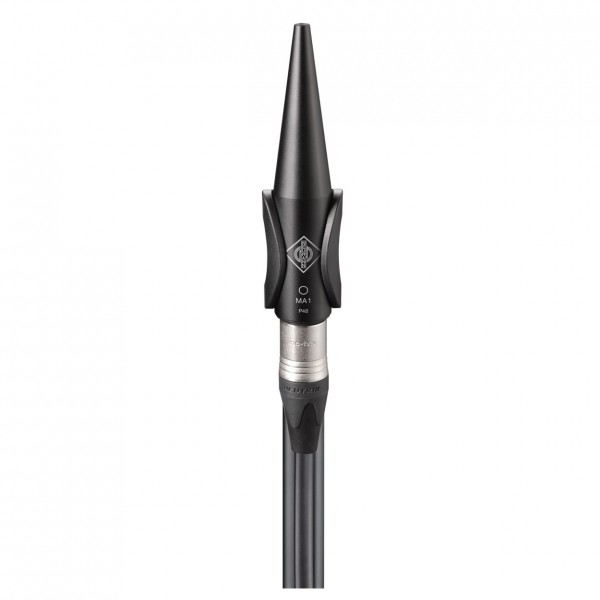

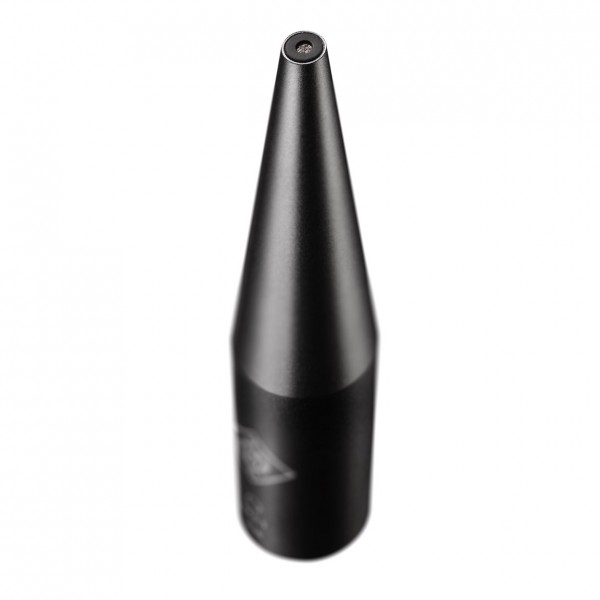

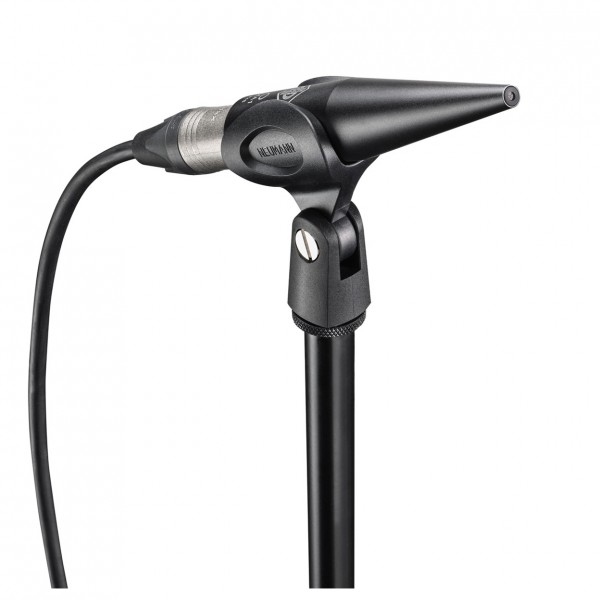

Neumann MA 1 Monitor Alignment

• Exceptional acoustic results for stereo home and professional studio setups
• Highest accuracy for tonality and impulse reproduction
• Purpose built for stereo pairs of Neumann studio monitors
• Correct your room with ease thanks to advanced calibration algorithms
• Developed by the world’s leading institute for audio signal processing (IIS) for the best monitor quality possible
• Easy to use software, compatible with both Mac and PC
• No plug-in or special audio drivers required – everything is stored in the DSP-powered monitors for ease of use
• Optimised amplitude response and phase thanks to dedicated software
• Comes fully equipped with an individually calibrated measurement microphone

Neumann KH 80 DSP A Studio Monitor

• 4" & 1" drivers powered by high efficiency 120w & 70w amplifiers
• Computer modeled, optimised drivers & MMD waveguide
• 57Hz (-3dB) bass extension & 108.8 dB SPL at 1 m
• DSP engine with standard IP networking & Neumann Control Software
• Compatible with existing range of Neumann analog studio monitors and sub-woofers

Specifications

Neumann MA 1 Monitor Alignment

• Acoustical operating principle: Pressure transducer
• Directional pattern: Omnidirectional
• Frequency range: 20Hz – 20kHz
• Sensitivity at 1kHz into 1 kohm: 30 mV/Pa -30dBv +/- 3dB uncalibrated | 30 mV/Pa -30dBv +/- 0.5dB calibrated (via software)
• Rated impedance: 50 ohms
• Rated load impedance: 1000 ohms
• Equivalent noise level, CCIR: 39dB
• Equivalent noise level, A-weighted: 27 Db-A
• Maximum SPL for THD 0.5 : 132dB
• Signal-to-noise ratio, CCIR (re. 94 dB SPL): 55dB
• Signal-to-noise ratio, A-weighted (re. 94 dB SPL): 67 dB
• Maximum output voltage: 10dBu
• Supply voltage (P48, IEC 61938): 48V +/- 4V
• Current consumption (P48, IEC 61938): 3 mA
• Matching connector: XLR3F
• Weight: 37g
• Diameter: 23mm
• Length: 117mm

Neumann KH 80 DSP A Studio Monitor

• Woofer: 4" (100mm) With Integrated Black Grille
• Tweeter: 1" (25mm) With Integrated Black Grille
• Bass Amplifier Output: 90W, 120W
• Treble Amplifier Output: 50W, 70W
• Controller Design: Digital, Active
• Crossover Frequency: 1.8kHz
• Crossover Slope: 48 dB/oct, 8th Order With Phase Correction
• Equalisation - Low Mid: 0dB, -1.5dB, -3dB, -4.5dB
• Equalisation - Via Neumann Control: 8 x Full Parametric IIR + Low/High Shelf Global Balance
• FIR Phase Correction: Linear Phase (170Hz - 16kHz, +/- 45°), Analog Emulation
• Protection Circuitry: Independent Soft Clip, Peak and Thermo Limiters For Woofer and Tweeter. Woofer Excursion Limiter
• Infrasonic Filter - Frequency; Slope : 61Hz; 12dB/oct
• Input: XLR/TRS Combo, Analog Electronically Balanced
• Impedance: 14kOhms
• Input Gain Control: 0 dB to -15dB
• Output Level Control: 94dB/100dB/108dB/114dB Sound Pressure Level
• CMRR: >56 dB @ 15kHz
• Max Input Level: +24 dBu for 94dB SPL Setting
• Digital Converter: 24-bit DAC
• Digital Internal Sampling Rate: 48kHz
• Dynamic Range D-A - Woofer, Tweeter: 114dB, 117dB
• User Adjustable Delay Range: 0ms - 70ms
• Audio-Video/Lip Sync Max Frames: 1.75 or 2.1
• Time-Of-Flight Max Distance: 24m
• Resolution: 0.1 ms / 3.44 cm
• Mains Power Supply: 100-240V, 50/60Hz
• Cabinet Surface: Painted Compositive Polycarbonate Material
• Operating Conditions: +10° C to +40° C
• Transport/Storage Conditions: -25° to +70°
• Mounting Points: 2 x M6 Threaded Inserts With 70mm Spacing On Back Panel, Depth From Outside of Cabinet 16mm
• Dimensions: 233mm x 154mm x 194mm (H x W x D)
• Weight: 3.4 kg
• Product code: MA1-KH80-UK
